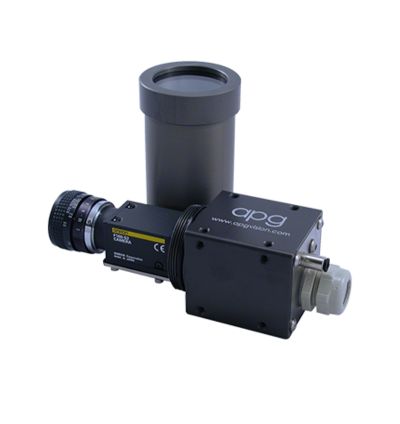

APG Vision 22C Camera Enclosure

The 22C Series enclosure is purpose-built for modern 30mm x 30mm cross-section miniature inline cameras. Compact and lightweight, it’s ideally suited for robotic systems and can be easily mounted on an arm or end effector.

Designed to accommodate lenses up to 48mm in diameter, this enclosure offers convenient, tool-less access to both the camera and lens. Users can choose between a PG16 drillable cord grip or a bulkhead cable fitting for quick disconnects, depending on system requirements.

TECHNICAL INFORMATION:

Durable Construction: Built from 6061 aluminum (body, barrel, and faceplate) with a 304 stainless steel rear bulkhead for industrial-grade strength and longevity

Lightweight Design: Weighs just 19.7 oz with a Hirose bulkhead connector or 19.2 oz with a PG16 cord grip, making it ideal for robotic arm and end-effector mounting

Robotics-Ready: Engineered specifically for compact integration in automated and robotic environments

Quick Camera Access: Tool-less design enables easy installation, maintenance, and lens changes without the need for disassembly

Customizable Viewport: Available with either a glass or acrylic window to suit environmental or optical requirements

Supports Extended Lenses: Optional longer barrel configurations accommodate lenses up to 48mm in diameter

Flexible Cable Integration: Choose between a Hirose bulkhead connector for quick disconnects or a PG16 drillable cord grip for use with premade cables

Environmental Protection Options: Optional air cooling and air curtain systems help keep the viewport clear of dust, water, and oil mist

Finish Options: Comes standard with a clear hardcoat anodized finish; custom colors and finishes available upon request

Included Hardware: Supplied with 18-8 stainless steel fasteners, including camera mounting screws for immediate setup

Internal Dimensions: 1.9″ (48 mm) diameter × 6.4″ (162 mm) length with the standard barrel
