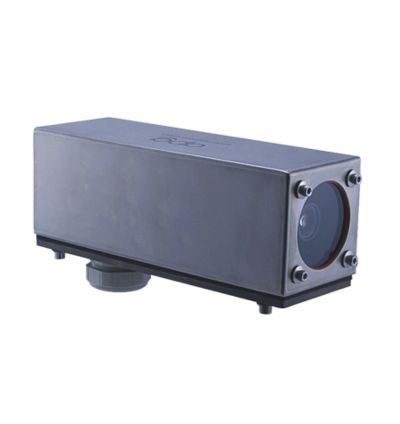

APG Vision 38D Camera Enclosure

Built for performance and value, the 38D Series enclosure provides dependable protection for larger inline-style cameras in industrial settings. Its stainless steel and aluminum construction shields sensitive equipment from dust, debris, splashed water, and incidental contact. The enclosure is highly adaptable, with optional air cooling and an air curtain faceplate to support clean, uninterrupted imaging in harsh environments.

A split-insert cable gland at the base delivers a watertight seal while allowing premade cables to pass through intact, no connector removal needed. The enclosure's cover removes easily via captive screws, granting full access to the camera and lens for quick focus and aperture adjustments. Designed to support optics up to 67mm in diameter, the internal layout also enables the lens to sit close to the viewport, helping reduce unwanted reflections.

TECHNICAL INFORMATION:

Essential Protection: Provides reliable defense against dust, debris, splashed water, and incidental contact in industrial environments

Standards-Compliant: Meets NEMA 12 requirements when equipped with a sealed viewport for indoor non-hazardous applications

Durable Construction: Fabricated with a 16-gauge 304 stainless steel cover and a 1/4″ 6061 aluminum base for rugged performance

Customizable Viewport: Comes standard with a choice of glass or acrylic viewing window

Premade Cable Support: Compatible with premade cables, no need to remove connectors during installation

Corrosion-Resistant Hardware: All external fasteners are 18-8 stainless steel for durability in demanding conditions

Flexible Cord Grip Options: Choose from a drillable PG36 (37mm) cord grip or 1/4″ NPT connectors for air cooling and pressure regulation
