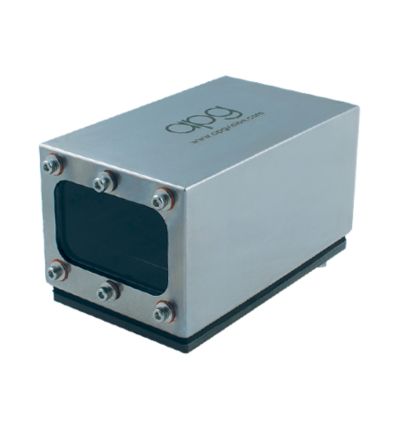

APG Vision 42D Camera Enclosure

The 42D Series enclosure offers a cost-effective, rugged housing solution for industrial camera systems. Constructed from stainless steel and aluminum, it protects against impacts, dust, debris, splashed water, and unintended contact - making it ideal for demanding industrial environments. Configurable with optional air cooling and air curtain faceplate enhancements, the 42D ensures reliable operation even in harsh conditions.

The bottom-mounted cable gland features a split insert that creates a watertight seal while allowing premade cables to pass through without removing connectors. Once the cover is removed, users gain full access to the camera and lens for simple, precise adjustments to focus and aperture settings. The enclosure also allows the lens to be positioned close to the viewport to help minimize internal reflections and optimize image clarity.

TECHNICAL INFORMATION:

Reliable Protection: Designed to safeguard industrial cameras from dust, splashed water, debris, and incidental contact

Standards-Compliant: Meets NEMA 12 standards for non-hazardous indoor environments when equipped with a sealed viewport

Durable Construction: Features a 16-gauge 304 stainless steel cover and a 1/4″ 6061 aluminum base for long-term durability

Adjustable Lens Positioning: Internal layout allows the camera-to-viewport distance to be modified for wide-angle or long lenses

Customizable Viewport: Standard configuration includes either a glass or acrylic viewing window to suit application needs

Premade Cable Support: Designed to accommodate premade cables without removing connectors, thanks to a split-insert cable gland

Corrosion-Resistant Hardware: All external fasteners are 18-8 stainless steel for enhanced performance in industrial environments

Flexible Cable Entry Options: Available with a drillable PG36 (37mm) cord grip or 1/4″ NPT fittings for air cooling and pressure regulation
