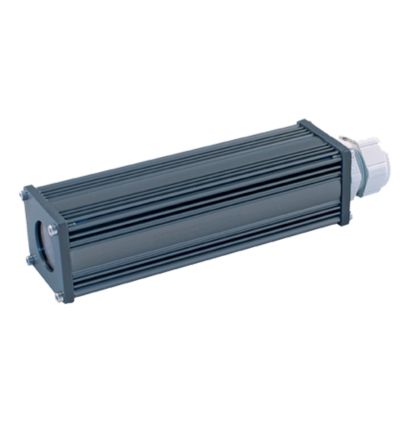

APG Vision EH Camera Enclosure

The EH Series enclosure is purpose-built for 30mm x 30mm cross-section inline cameras with lenses up to 26mm in diameter. Designed as a lightweight, rugged, and low-cost solution, this enclosure provides reliable protection in demanding indoor environments with a NEMA 12 rating. Its compact form factor makes it ideal for tight spaces, and optional air cooling and air curtain configurations offer additional protection in high-dust or variable-temperature settings.

Constructed from durable aluminum with a hardcoat anodized finish and 18-8 stainless steel fasteners, the EH Series is engineered for longevity. A split cable gland supports premade cables without the need to remove connectors, streamlining installation. Available in two standard lengths (152.4mm and 177.8mm) with custom sizing also available, this enclosure offers flexibility for a range of applications. For added versatility, a pan and tilt mount accessory is available to simplify camera positioning.

TECHNICAL INFORMATION:

Essential Protection: Designed to provide basic environmental shielding for indoor applications

Standards-Compliant: Meets NEMA 12 requirements for protection against dust, dirt, and non-corrosive liquid ingress

Premade Cable Compatible: Features a split cable gland to accommodate premade cables without removing connectors
