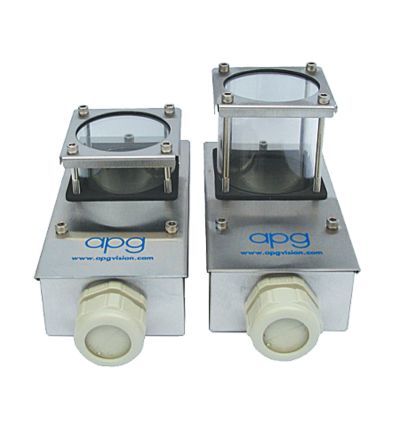

APG Vision L1 Camera Enclosure

The L1 Series enclosure offers robust protection against dust, debris, and unintended contact while delivering excellent impact resistance. Designed for industrial environments, it features a drillable PG29 cable gland that forms a watertight seal around one or more premade cables - no connector removal required.

Optimized for use with “80/20” 1500 series or 40mm series extrusions, the enclosure includes M8 stainless steel fasteners for secure mounting. A clear lens spacer provides visibility of lens settings without opening the enclosure, and full access to the camera and lens is available by simply removing the cover. With support for various lens sizes and optional longer spacers, the L1 can accommodate lenses up to 4" or more in length, offering both protection and convenience in a wide range of applications.

TECHNICAL INFORMATION:

Industrial-Grade Protection: Built to withstand dusty, dirty environments with NEMA 12 and IP61-rated sealing

Vertical Camera Support: Optimized for cameras with a vertical layout, ideal for tight or upright installations

Durable Construction: Fabricated from 16-gauge (lid) and 18-gauge (body and faceplate) 304 stainless steel for robust performance

Adjustable Lens Positioning: Camera-to-viewport distance can be modified to support longer lenses and improve optical alignment

Ringlight Compatibility: Accommodates select integrated ringlights for enhanced illumination flexibility

Clear Viewing Options: Ships standard with either a glass or polycarbonate viewport; lens tube is made of polycarbonate

Premade Cable Support: Designed to work with premade cables, no disassembly of connectors required
