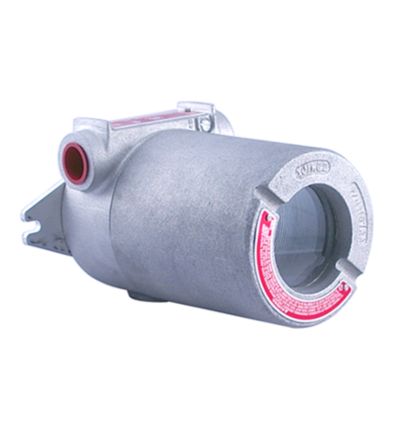

APG Vision C2 Camera Enclosure

The C2 Series enclosure is engineered for use in hazardous locations, meeting NEC Class I, Groups B, C, and D, and Class II, Groups E, F, and G - per Article 500 of the National Electrical Code. With its robust construction and NEMA 4X rating, the C2 is also suitable for saltwater washdown environments, making it ideal for harsh industrial and marine applications.

Designed to accommodate larger-diameter cameras and integrated ringlights, the C2 enclosure includes two ¾″ NPT tapped conduit ports for secure cable routing. Additional conduit entries can be added when installed in accordance with factory guidelines, providing flexible integration without compromising safety or compliance.

TECHNICAL INFORMATION:

Hazardous Location Certified: Complies with NEC Class I, Div 1 & 2 (Groups B, C, D), Class II, Div 1 & 2 (Groups E, F, G), and Class III standards for explosive gas and dust environments

Third-Party Certifications: UL Classified and CSA Certified (Standard C2 No. 30-M1984) for verified safety and performance

International Compliance: CENELEC approved for use in global hazardous environments

Ingress Protection: Rated NEMA 3, 4X, 7, and 9 for robust protection against dust, water, corrosion, and explosive atmospheres

Durable Construction: Built from heavy-duty cast aluminum for long-term reliability in extreme conditions

Flexible Conduit Entry: Equipped with two ¾″ NPT tapped fittings for secure cable conduit connections
