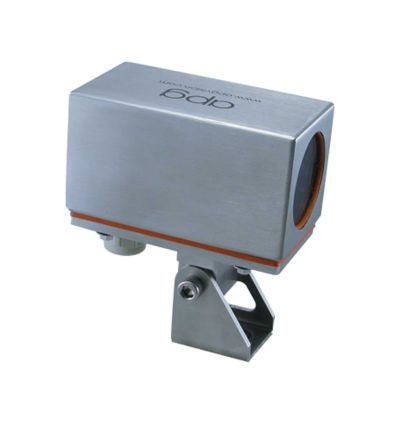

APG Vision 30S Camera Enclosure

The 30S Series enclosure is built from 316 stainless steel to provide durable protection for smaller inline-style cameras in harsh, corrosive environments. Designed with food-grade considerations in mind, its form minimizes water collection points, making it ideal for washdown areas and other hygienic applications. The enclosure is fully configurable, with optional air cooling and an air curtain faceplate to maintain a clear viewing surface in demanding conditions.

A bottom-mounted cable gland with a split insert provides a watertight seal while allowing standard I/O, power, and Ethernet cables to pass through intact - no connector removal required. Once the cover is removed, the camera and lens are fully accessible, simplifying focus and aperture adjustments. The internal design allows the lens to be positioned close to the viewport to reduce reflections, and it accommodates large-diameter lenses or ringlights with a lit area of up to 50mm.

TECHNICAL INFORMATION:

Sanitary, Corrosion-Resistant Design: Engineered for highly corrosive environments and food-grade applications with full 316 stainless steel construction

Broad Camera Compatibility: Supports over 40 different inline-style cameras for flexible integration

Ingress Protection: Meets IP68 and NEMA 4X standards with a sealed viewport; optional upgrade to IP69K for high-pressure washdown environments

Durable Construction: Enclosure cover made from 16-gauge 316 stainless steel; base constructed from 1/4″ thick 316 stainless steel for maximum structural integrity

Adjustable Lens Positioning: Camera-to-viewport distance can be configured to support long or wide-angle lenses

Customizable Viewport: Available with standard glass or acrylic windows to suit optical and environmental needs

Premade Cable Support: Designed for use with premade cables—no need to remove connectors during installation

Corrosion-Resistant Hardware: All external fasteners are 316 stainless steel; mounting hardware for most supported cameras is included

Flexible Cable & Cooling Options: Multiple cord grip options available, including PG11 (single cable), PG29 (drillable), 1″ NPT conduit, and 1/4″ NPT connectors for air cooling or pressure regulation
