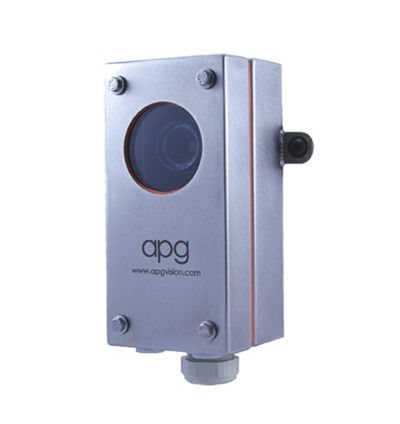

APG Vision L7 Camera Enclosure

The L7 Series enclosure is a robust 316 stainless steel housing engineered for high-performance industrial cameras. Built to perform in highly corrosive environments, it also meets the stringent hygienic standards required for food and beverage applications. The enclosure's sanitary design minimizes areas where water can collect, making it well-suited for washdown zones and clean-in-place (CIP) processes.

Highly configurable, the L7 supports a range of options including drillable and single-cable cord grips, air cooling ports, and an air curtain faceplate for additional protection. The bottom-mounted cable gland features a split insert that forms a watertight seal while allowing standard I/O, power, and Ethernet cables to pass through intact. Once the cover is removed, the user gains full access to the lens, simplifying focus and aperture adjustments. Lens spacers enable close positioning to the viewport to reduce reflections, and the enclosure accommodates large-diameter lenses or ringlights with a lit area up to 65mm.

TECHNICAL INFORMATION:

Corrosion-Resistant Design: Engineered for harsh environments with full 316 stainless steel construction, ideal for corrosive and washdown conditions

Ingress Protection: Meets IP68 and NEMA 4X standards with sealed single-cable cord grips; optional IP69K rating available for high-pressure washdown environments

Food-Grade Ready: Designed for use in FDA-regulated applications with features that minimize water retention and support sanitary compliance

Adjustable Lens Positioning: Configurable camera-to-viewport distance to support long or wide-angle lenses; accommodates ringlights up to 65mm in lit area

Customizable Viewport: Comes standard with a choice of glass or polycarbonate windows to suit specific optical or environmental requirements

Premade Cable Compatibility: Equipped with a split-insert cord grip to accommodate standard I/O, power, and Ethernet cables without connector removal

Rugged Construction: Built from 16-gauge 316 stainless steel with all external fasteners also in 316 stainless for maximum durability

Flexible Cable & Cooling Options: Supports multiple entry configurations including PG11 single cable cord grips, PG29 drillable grips, 1″ NPT conduit, and 1/4″ NPT ports for air cooling and pressure regulation
