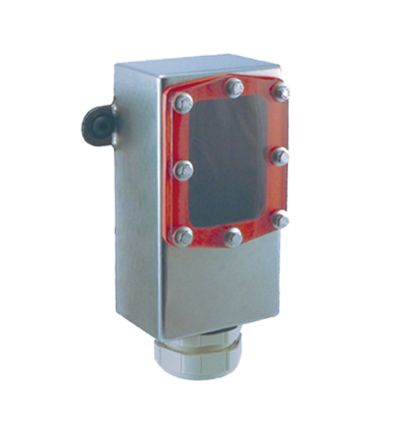

APG Vision LD Camera Enclosure
The LD Series enclosure is constructed from 316 stainless steel to provide robust protection for industrial cameras in highly corrosive and sanitary environments. Engineered with food-grade applications in mind, the enclosure features a streamlined design that minimizes water retention points, making it ideal for washdown and hygienic zones.
A bottom-mounted cable gland with a split insert forms a watertight seal around one or more cables, allowing I/O, power, and Ethernet connections to pass through without removing connectors. This simplifies installation and ensures reliable protection in moisture-prone environments.
TECHNICAL INFORMATION:
Corrosion-Resistant Design: Built from 16-gauge 316 stainless steel for reliable performance in highly corrosive and washdown environments
Ingress Protection: Meets IP68 standards for water and dust resistance, with optional IP69K upgrade for high-pressure washdown applications
Food-Grade Construction: Engineered to support sanitary applications with a design that minimizes water collection points
Standard Viewport: Comes equipped with a durable acrylic window for clear imaging in industrial and hygienic settings
Premade Cable Support: Split-insert cable gland allows watertight sealing around standard I/O, power, and Ethernet cables—no connector removal needed
Rugged Hardware: All external fasteners are 316 stainless steel for long-lasting corrosion resistance in demanding environments
Quick Info for the APG Vision LD
| Series: | Food Grade |
|---|---|
| Feature: | Built entirely from stainless steel |
| Manufacturer: | APG Vision |
