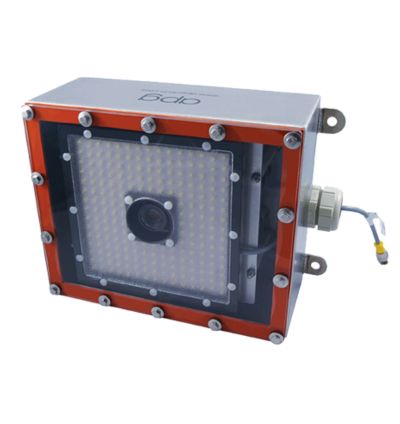

APG Vision SL Camera Enclosure

The SL Series enclosure is purpose-built from 316 stainless steel to protect vertical layout cameras paired with large-diameter ringlights in corrosive and washdown environments. Designed with food-grade applications in mind, it features integrated moisture traps and hygienic construction to minimize water retention - making it well-suited for FDA-regulated facilities.

The abrasion-resistant acrylic viewport ensures clear imaging in harsh conditions, with an optional anti-reflective coating available upon request. A bottom-mounted cable gland with a split insert forms a watertight seal and supports up to three premade cables, including power, I/O, and Ethernet, no connector removal required. This enclosure provides a rugged, sanitary, and flexible solution for demanding machine vision applications.

TECHNICAL INFORMATION:

Key Features:

Sanitary, Corrosion-Resistant Design: Constructed from 16-gauge Type 316 stainless steel for long-term durability in highly corrosive and washdown environments

Vertical Camera Compatibility: Designed for vertical layout cameras with integrated ringlights up to 7″ × 7″ in size

Ingress Protection: Rated IP68 for dust and water resistance; optional IP69K upgrade available for high-pressure washdown applications

Food-Grade Ready: Engineered with moisture-trapping design features ideal for hygienic and FDA-regulated environments

Adjustable Optical Configuration: Camera-to-viewport distance can be modified to accommodate shorter or longer lenses

Clear Viewport: Equipped with an abrasion-resistant acrylic window; optional anti-reflective coating available upon request

Flexible Cable Integration: Split-insert cable gland supports up to three premade cables without connector removal

Customizable Internal Layout: Adjustable mounting positions for both the camera and ringlight within the enclosure

Corrosion-Resistant Hardware: All fasteners are 316 stainless steel; includes mounting hardware and adapter for camera and light source
