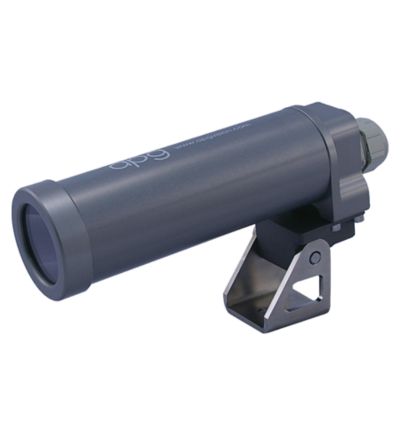

APG Vision 24C Camera Enclosure

The 24C Series enclosure is designed to house inline cameras with cross-sections up to 44mm x 30mm and supports integrated ringlights up to 55mm in diameter. Lightweight and compact, it’s ideal for robotic applications and can be easily mounted on an arm or end effector. The tool-less design allows for quick access to the camera and lens, and it comes equipped with a standard PG21 drillable cord grip for flexible cable routing.

To meet varying environmental needs, the 24C Series is available with optional glass or acrylic viewports, air cooling, and an air curtain faceplate that directs a film of air across the window to keep out dust, water, and oil mist. The enclosure features a durable, clear hardcoat anodized finish by default, with custom colors and finishes available upon request, making it a versatile solution for precision imaging in demanding industrial settings.

TECHNICAL INFORMATION:

Lightweight & Durable Construction: Built from 6061 aluminum for the body, barrel, and faceplate, offering a strong yet lightweight solution

Robot-Ready Design: Compact and easy to mount on robotic arms or end effectors for dynamic, automated applications

Quick Camera Access: Tool-less design allows for fast and convenient access to the camera and lens during setup or maintenance

Customizable Viewport: Available with either a glass or acrylic window to suit environmental or optical requirements

Flexible Barrel Lengths: Multiple barrel lengths available to support various lens configurations and working distances

Environmental Protection Options: Includes air cooling and air curtain options to help maintain window clarity in dusty or wet conditions

Corrosion-Resistant Hardware: All fasteners are 18-8 stainless steel; mounting hardware for your camera is included

Interior Dimensions: 2.25″ (57 mm) diameter × 7.25″ (184 mm) length with the standard 6.4″ barrel
