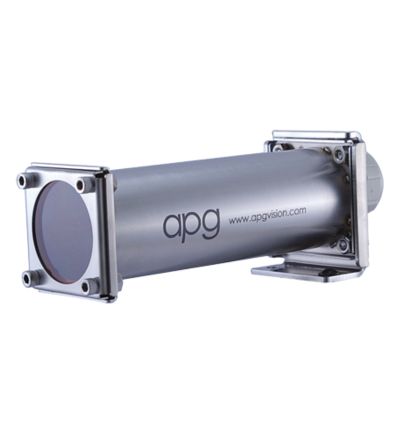

APG Vision 25R Camera Enclosure

The 25R Series enclosure is a compact, high-performance housing designed to protect small cameras in harsh environments. Constructed entirely from 316 stainless steel, it offers superior corrosion resistance – ideal for applications in washdown areas, marine environments, or chemical processing facilities.

The enclosure comes equipped with two IP68-rated cord grips that accommodate cable diameters from 3mm to 7mm, with optional grips for 5mm to 10mm cables available at no additional cost. The removable barrel provides full access to the camera and lens after mounting, allowing precise focus and aperture adjustments without disassembly, streamlining installation and setup.

TECHNICAL INFORMATION:

Corrosion-Resistant Design: Engineered for use in harsh or corrosive environments with full 316 stainless steel construction

Compact Camera Support: Designed to house smaller cameras in demanding industrial or washdown applications

Sealed for Protection: Meets IP67 standards for dust-tight and water-resistant performance

Flexible Sizing: Available in various barrel lengths to accommodate different camera and lens setups

Customizable Viewport: Standard configuration includes a choice of glass or acrylic viewing window

Dual Cable Entry: Comes equipped with two IP68-rated cord grips for cable diameters ranging from 3mm to 7mm; 5mm to 10mm options available at no extra cost

Rugged Hardware: All fasteners and clinch nuts are 316 stainless steel for maximum durability; camera mounting fasteners are included

Interior Dimensions: 2.3″ diameter; barrel length can be specified based on application needs
