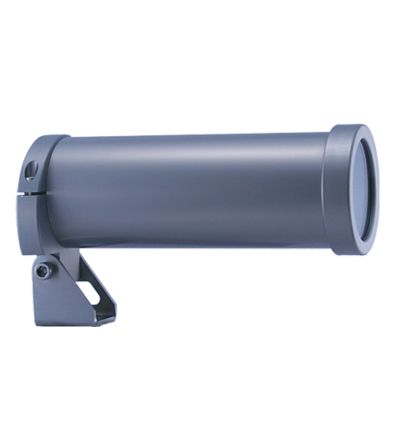

APG Vision 35C Camera Enclosure

The 35C Series enclosure is designed to simplify camera installation, alignment, and servicing. It features a rear-mounted cable gland that provides a watertight seal around one or more premade cables, no disassembly required. The included stainless steel pan-and-tilt mount, along with integrated roll-axis adjustment, enables precise positioning of the camera for optimal viewing angles. All focus and f-stop settings can be made after the camera is securely mounted, streamlining setup and reducing error.

Available in standard barrel lengths ranging from 6″ to 13″, the 35C can also be configured with extensions or custom lengths to suit specific application needs. Optional accessories include an air curtain faceplate, air purge and cooling fittings, heat-absorbent glass for high-temperature environments, and polycarbonate faceplates for food-grade applications, making the 35C a versatile choice for a wide range of industrial imaging scenarios.

TECHNICAL INFORMATION:

Corrosion-Resistant Design: Built for demanding environments with a durable combination of anodized aluminum and 304 stainless steel components

Three-Axis Adjustability: Integrated pan, tilt, and roll adjustments allow for precise sensor alignment and camera positioning

Broad Compatibility: Supports a wide range of cameras and vision systems for flexible integration

Environmental Protection: Meets IP65 standards with the standard faceplate, offering protection against dust and water spray

Streamlined Setup: Designed for easy sensor mounting, lens adjustment, and camera alignment—even after installation

Premade Cable Support: Equipped with a PG36 split-insert cable gland for sealed passthrough of premade cables without connector removal

Cooling-Ready: Backplate includes two ¼″ NPT ports for optional air cooling and pressure regulation

Rugged Hardware: All external fasteners are 18-8 stainless steel; camera mounting fasteners are included for convenience
