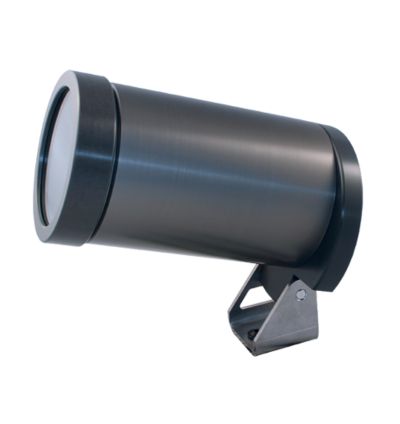

APG Vision 47C Camera Enclosure

The 47C Series enclosure is the updated successor to the 45C, featuring similar dimensions with improved fit and finish for a more refined and functional design. Engineered for straightforward installation, aiming, and maintenance, it includes a rear-mounted cable gland that creates a watertight seal around one or more premade cables - no disassembly required.

Ideal for larger body cameras, extended lenses, and integrated ringlights, the 47C includes a stainless steel mount that offers full pan and tilt adjustability, along with roll-axis control for precise targeting. All optical adjustments can be performed after mounting, simplifying the setup process. Available in standard barrel lengths from 6″ to 13″, the enclosure also supports custom configurations to meet specific system requirements.

TECHNICAL INFORMATION:

Integrated 3-Axis Adjustment: Built-in pan, tilt, and roll capability allows precise camera alignment without external mounting hardware

Large Camera Compatibility: Designed to support larger cameras, sensors, and lens assemblies, including those with ring lights

Environmental Protection: Meets IP65 standards with the standard faceplate for dust-tight and water-resistant performance

Durable Construction: Fabricated from hardcoat anodized 6061 aluminum with a stainless steel mounting foot for rugged, long-term use

Tool-Free Access: Allows quick access to the camera for focus, f-stop, or maintenance adjustments without the need for tools

Premade Cable Support: Equipped with a PG36 split-insert cable gland for watertight cable entry without removing connectors

Cooling-Ready Design: Includes two ¼″ NPT ports for optional air purge and cooling system integration

Corrosion-Resistant Hardware: All external fasteners are 18-8 stainless steel; camera mounting hardware is included

Spacious Interior Dimensions: 4.2″ internal diameter × 12.4″ length with standard 13″ barrel; custom barrel lengths available
