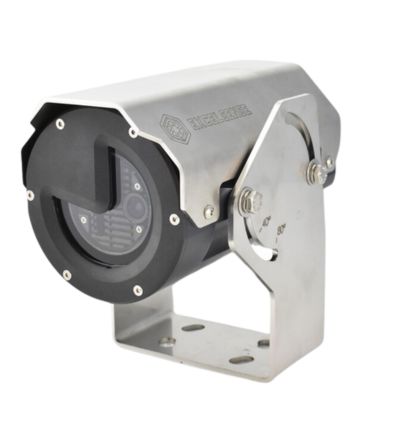

APG Vision ToughEye-1700™ Camera

The ToughEye-1700™ is built on the same core principles as the ToughEye-3100™ series, delivering industry-leading, zero-maintenance performance with advanced self-cleaning capabilities. Designed for industrial environments where clear visibility is mission-critical, the ToughEye-1700™ features a rugged, single-piece housing and integrates field-proven ClearSight™ technology to ensure a consistently unobstructed view—no manual cleaning required.

Engineered for reliability, durability, and image clarity, the ToughEye-1700™ is part of a trusted family of cameras purpose-built for tough conditions. Its innovative design minimizes downtime and eliminates routine maintenance, making it an ideal solution for high-demand operations where consistent visual monitoring is essential.

TECHNICAL INFORMATION:

Key Features – Rugged Industrial IP Camera

• Continuous Visibility: Maintains uninterrupted view during cleaning

• Resolution: Full HD (1920 × 1080)

• Minimum Illumination:

  • Color: 0.001 Lux @ F1.2 (AGC ON)

  • B/W: 0.0001 Lux @ F1.2 (AGC ON)

• Wide Dynamic Range: True WDR, >120 dB

• Horizontal Field of View: Approx. 80° or 100° (custom options available)

• Video Output (IP): H.265, H.264, MJPEG

• Video Output (Analog):

  • NTSC: 720 × 486

  • PAL: 720 × 576

• Network Protocols Supported:

  • IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP

  • RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

• ONVIF Compliance: Profile S, Profile G

• Recording Options:

  • Network recording (continuous and motion-based)

  • On-board storage: up to 128 GB

• Clean Cycle Operation:

  • Timer-based or electrical trigger (up to 24 VDC)

• Power Input: PoE+ (IEEE 802.3at) or 24 VDC

• Max Power Consumption: 25W

• Operating Temperature Range: -40°C to 60°C (all versions)

• Environmental Protection: IP69 rated

• Vibration Resistance: Tested to 11g

• Dimensions: 102 mm diameter × 178 mm (4 in × 7 in)

• Weight:

  • Camera only: 3.0 kg (6.5 lbs)

  • With bracket and sunshield: 4.3 kg (9.5 lbs)
