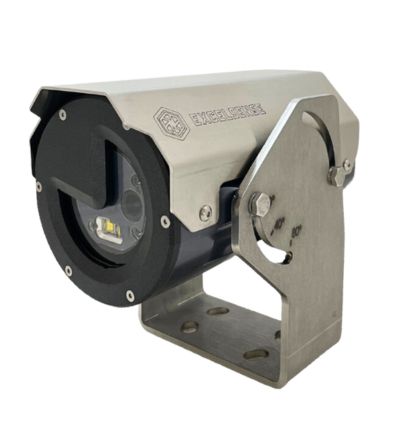

APG Vision ToughEye-1700™ + Integrated White Light Camera

The ToughEye-1700™ builds on the proven design of the ToughEye-3100™ series, delivering industry-leading, zero-maintenance performance for environments where a clear view is critical. Designed for the harshest industrial conditions, it features a rugged, single-piece housing and incorporates our field-proven ClearSight™ technology—paired with an additional self-cleaning white light to ensure consistent illumination and unobstructed vision, even in the most challenging settings.

Ideal for high-demand applications, the ToughEye-1700™ excels in three key areas: reliability, image clarity, and truly maintenance-free operation. Its intelligent, self-cleaning design eliminates manual upkeep and reduces downtime, providing dependable, round-the-clock visual monitoring wherever it’s needed most.

TECHNICAL INFORMATION:

Key Features:

• Interruption-Free View: Maintains visibility during cleaning

• Resolution: Full HD (1920 × 1080)

• Minimum Illumination:

  • Color: 0.001 Lux @ F1.2 (AGC ON)

  • B/W: 0.0001 Lux @ F1.2 (AGC ON)

• Wide Dynamic Range: True WDR >120 dB

• Horizontal Field of View: Approx. 80° or 100° (custom options available)

• Video Output (IP): H.265, H.264, MJPEG

• Video Output (Analog):

  • NTSC: 720 × 486

  • PAL: 720 × 576

• Network Protocols:
  IPv4/IPv6, HTTP/HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP,
  PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, 802.1x

• ONVIF Compliance: Profile S, Profile G

• Recording Options:

  • Network-based (continuous or motion)

  • Onboard storage: up to 128 GB

• Clean Cycle Control: Timer-based or electrical trigger (up to 24 VDC)

• Power Input: PoE+ (IEEE 802.3at) or 24 VDC

• Max Power Consumption: 25W

• Operating Temperature: -40°C to 60°C

• Environmental Protection: IP69 rated

• Vibration Resistance: 11g tested

• Dimensions: 102 mm diameter × 178 mm (4 in × 7 in)

• Weight:

  • Camera: 3.0 kg (6.5 lbs)

  • With bracket and sunshield: 4.3 kg (9.5 lbs)
