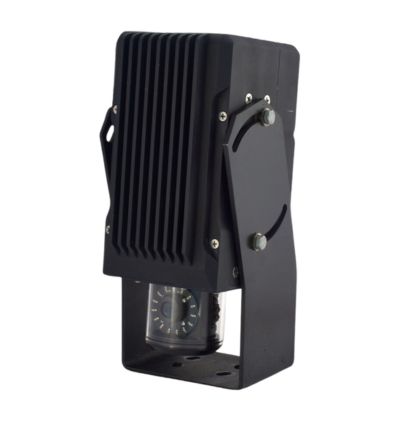

APG Vision ToughEye-3100™ Camera

The ToughEye-3100™ series delivers industry-leading performance with a zero-maintenance, self-cleaning design—ensuring a consistently clear view in the most demanding industrial environments. Engineered with a rugged, single-piece housing and built around field-proven durability, each unit is equipped with ClearSight™ technology to actively maintain a clean lens without manual intervention.

Ideal for applications where visibility is critical to operational success, the ToughEye-3100™ excels in reliability, clarity, and maintenance-free performance. Designed for seamless integration, all models offer both analog and IP video outputs, providing flexibility for a wide range of system configurations. Whether in harsh process environments or high-precision operations, ToughEye-3100™ cameras deliver dependable imaging you can count on.

TECHNICAL INFORMATION:

Key Features:

• Image Sensor: 2.34 Megapixel (2000 × 1241 resolution)

• Minimum Illumination: 0.1 Lux @ F2.0

• Integrated Illumination:

  • Infrared version: up to 15 m (50 ft)

  • Visible version: up to 5 m (16 ft)

• Horizontal Field of View: 80° or 120°

• Video Output (IP):

  • H.264: 1920 × 1080

  • MJPEG: 1280 × 720

• Video Output (Analog):

  • NTSC: 720 × 486

  • PAL: 720 × 576

• Network Protocols: RTSP, RTP, UDP, RTCP, IGMP, HTTPS

• ONVIF Compliance: Profile S

• Onboard Storage: 32GB (continuous or motion-based recording)

• Clean Cycle Operation:

  • Timer-based or electrical trigger (up to 24V)

  • Extension time: ~3 seconds

  • Full cycle time: ≤10 seconds

  • Rated for 60,000 or 90,000 cycles (model dependent)

• Power Input: 24V DC

• Max Power Consumption: 96W

• Operating Temperature:

  • Extended: -40°C to 50°C

  • Standard: 5°C to 50°C

• Environmental Protection: IP68 rated

• Vibration Resistance: Tested to 11g

• Dimensions:

  • Extended: 297 × 170 × 130 mm (11.7 × 6.7 × 5.1 in)

  • Retracted: 241 × 170 × 130 mm (9.5 × 6.7 × 5.1 in)

• Weight:

  • Camera: 5.9 kg (13 lbs)

  • Standard Bracket: 2.3 kg (5 lbs)
