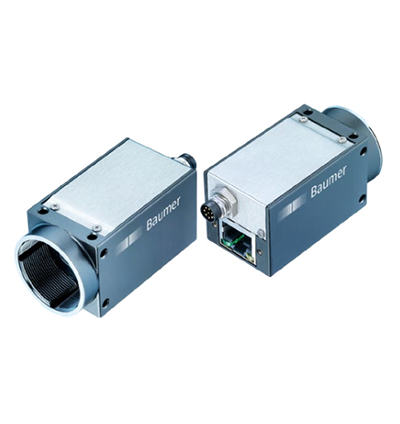

Baumer VCXG-25 Camera

Baumer VCXG-25 cameras provide cutting-edge CMOS technology

Using Baumer CX series cameras, you are banking on latest CMOS sensor generation Sony^® Pregius^™ and ON Semiconductor^® PYTHON for future-oriented applications. Among the wide variety of sensors you are sure to find the matching camera for most varied applications across all industries.

Thanks to extended functionality combined with excellent image quality and high frame rates, the CX cameras open up a wide range of applications. The 29 × 29 mm form factor ensures easy integration with high amount of flexibility - even in narrow installation environments.

HIGHLIGHTS:

• CMOS sensors
• GigE power supply: 12 - 24 V externally or PoE
• Camera temperature range up to 65°C
• 29 x 29 mm to fit effortlessly into limited space
• M3 mount at each side for time and cost-saving integration with high flexibility
• Opta-Decoupled input and output with automation voltage levels
• Burst Mode maximum sensor speed at any bandwidth

TECHNICAL INFORMATION:

• Densor ON Semiconductor PYTHON2000
• Type 2/3” progressive scan CMOS
• Resolution: 2592 × 2048 px
• Exposure time: 0,02 ... 1000 ms
• Pixel size: 4.8 × 4.8 μm
• Image formats, frame rate max.

  • Full Frame, 1920 × 1200 px, max. 53,0 fps
  • Binning 2×2, 960 × 600 px, max. 59,0 fps
  • Binning 2×1, 960 × 1200 px, max. 59,0 fps
  • Binning 1×2, 1920 × 600 px, max. 59,0 fps
