Baumer SXC10 Camera

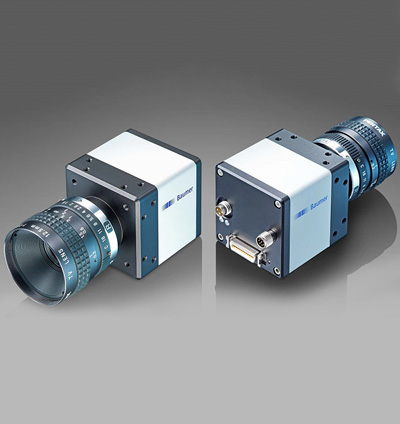

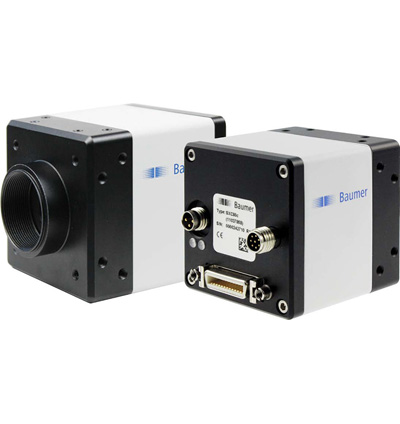

Baumer SXC10 Camera - Digital Monochrome Matrix, 1 Megapixel, CameraLink^®

The CCD cameras with CameraLink^® in the Baumer SX series show every detail, no matter how fine, even with short inspection times. Thanks to the wide diversity of variants, they always fit the bill in many different applications.

FEATURES:

• CameraLink^® progressive scan CCD camera
• 1024 x 1024 pixel
• Up to 120 full frames per second
• Excellent image quality
• High sensitivity and dynamic range
• Binning and true partial scan function (ROI) for increased frame rates
• External synchronization via industrial compliant process interface (trigger / flash)
• Integrated supplementary function for flexible integration
• Integrated 256 MByte RAM for temporarily image data buffering
• Compact and lightweight aluminum housing
• Standard 26 pin MDR CameraLink® connector
• Camera parameter programmable via configuration tool for Windows
• Baumer-GAPI: Flexible, generic software interface for Windows / Linux

TECHNICAL INFORMATION:

• Sensor: Truesense Imaging KAI-01050
• Type: 1/2" interline progressive scan CCD
• Resolution: 1024 × 1024px
• Frame rate max.: 120 fps
• Exposure time: 0,004 ... 1000 ms
• Image formats:
  Full Frame, 1024 × 1024 px, max.120.0 fps
  Binning 2×2, 512 × 512 px, max. 205.0 fps
  Binning 1×2, 1024 × 512 px, max. 205.0 fps
  Binning 2×1, 512 × 1024 px, max. 120.0 fps
• Pixel formats: Mono 8, Mono10, Mono12
• Analog controls: Gain (0 … 26 dB)
• Color models: Mono
• Internal buffer: 256 MB
• Synchronization: free running, trigger
• Trigger sources: Hardware, Software, FrameGrabber
• Digital inputs: 3 output lines
• Data interface: CameraLink^® Base, Connector: Standard MDR26
• Process interface: M8 / 8 pins
• Power supply: M8 / 3 pins
• Material: housing: aluminum
• Lens mount: C-mount
• Width: 52 mm
• Height: 52 mm
• Depth: 54 mm
• Weight: 230g
• Voltage supply range +Vs: 9,6 ... 30 VDC
• Power consumption: approx. 7.7 Watts
