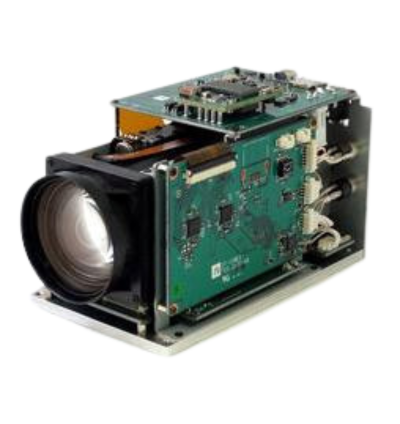

The DCC-4KNDI utilizes NDI® compatibility with the previous DCC-4KZM camera, significantly improving and enhancing versatility. This addition eliminates the need for SDI cables and allows for a single Ethernet cable connection to the acquisition system, making it highly mobile and easy to control. This camera seamlessly integrates into the advanced IP-based workflow enabled by NDI® technology. These features, along with a powerful CMOS image sensor, make the DCC-4KNDI camera ideal for machine vision applications.
TECHNICAL INFORMATION:
- 4K (3840x2160) 60p camera using 1/1.8“ CMOS image sensor
- Features state-of-the-art Clairvu™ ISP for high quality image processing and accurate color reproduction
- 18x integrated zoom lens with AF and MF controls
- Complies with full NDI® for true broadcast quality imagery
- Control via Web UI, Newtek Studio Monitor, Web API/REST API and serial connection
- Integrated AE and AWB
- Supports output in 4K and FHD resolutions
- BT.2100 (HDR) /BT.2020 (Wide Color Gamut) ready
- Video monitor output/Stereo audio line input
- PoE+ / DC 5V operation
- Available as a kit or with casing (to be introduced later).
Quick Info for the CIS DCC-4KNDI
| Camera Series: | Block (CIS) |
|---|---|
| FPS: | 60 |
| Interface: | Ethernet |
| Manufacturer: | CIS |
| Resolutions: | 8 MP |
| Signal System: | Color |
