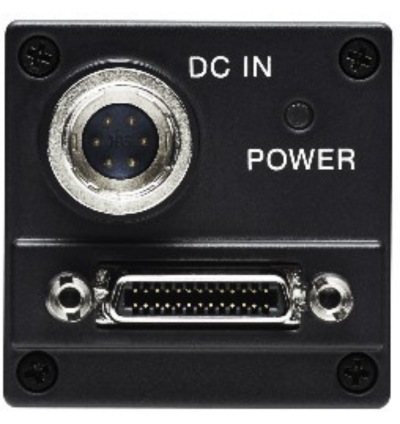

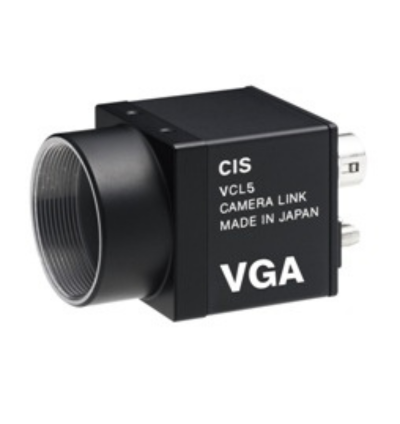

The VCC-VCL5M camera combines Camera Link interface with VGA resolution. It employs a 0.4M pixel, 1/2.9 type CMOS sensor. With a compact size of 29mm, it delivers high-speed capability, capturing up to 519 frames per second. Despite its impressive performance, this camera remains cost-effective, making it an ideal choice for various industrial applications.
TECHNICAL INFORMATION:
- Global shutter type CMOS sensor
- Camera Link 1tap/2tap/3tap selection, output clock selection, output bit length selection
- Trigger shutter mode: Fixed trigger shutter mode / Pulse width trigger shutter mode
- High frame rate (519fps at entire frame, 578fps at VGA)
- Shading correction
- Defective pixels correction by users
- 29mm cubic in size
- ROI function
Quick Info for the CIS VCC-VCL5M
| Camera Series: | CL |
|---|---|
| Interface: | Camera Link |
| Manufacturer: | CIS |
| Resolutions: | Under 1 MP |
| Signal System: | Monochrome |
