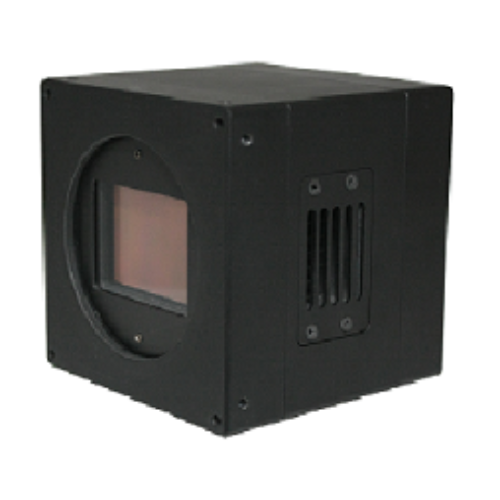

The VCC-127CXP6M camera boasts an impressive resolution of 127 million pixels. The VCC-127CXP6M also features a cost-effective, compact size, measuring 100mm (H) x 100mm (W) x 100mm (D). The VCC-127CXP6M is fully compatible with CoaXPress Version 1.1.1 and enables data transfers of up to 40m with CXP-6.
With features such as a trigger shutter, ROI, 2x2 binning, defective pixel correction, Gain, shading correction, black level adjustment, flat field correction, gamma correction, and PoCXP support, the VCC-127CXP6M is ideal for various Machine Vision inspection systems, measurement, archive, research and observation, and medical and life science imaging systems.
TECHNICAL INFORMATION:
- Global shutter, CMOS sensor
- CoaXPress CXP-6, CXP-12
- 1 lane, 2 lanes
- PoCXP
- Approx. 40m of Max. cable length at CXP-6
- ROI
- Exposure and Gain settings
- Flat field correction
- External trigger mode
- GenICam complied
- M72 mount

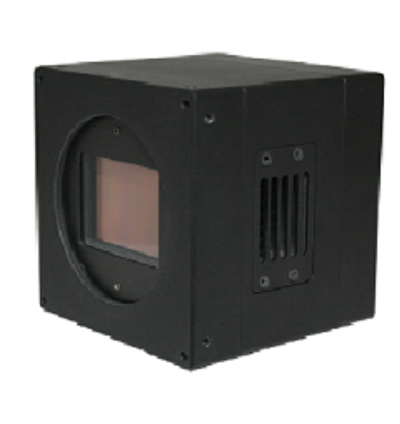

Quick Info for the CIS VCC-127CXP6M
| Camera Category: | - |
|---|---|
| Camera Series: | CXP |
| Format: | 3.6 |
| FPS: | 4.6Hz |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | 127 MP |
| Sensor: | Sony IMX661 |
| Shutter: | Global |
| Signal System: | Monochrome |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
