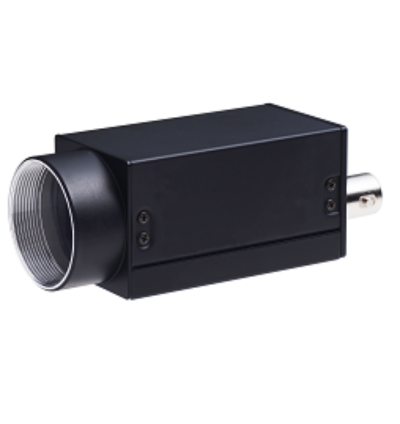

The VCC-24CXP7M camera boasts a resolution of 24 million pixels and comes equipped with a CoaXPress interface. The VCC-24CXP7M features a compact design, measuring 29mm (H) × 29mm (W) × 55mm (D). It complies with CoaXPress Version 1.1.1 and supports data transfers of approximately 30m. With essential functions tailored for Machine Vision applications, including trigger shutter, ROI, defective pixel correction, shading correction, Gain, gamma correction, and PoCXP support, it is well-suited for a variety of Machine Vision inspection systems, robot vision, medical image processing equipment, medical inspection, and alignment tasks.
TECHNICAL INFORMATION:
- Global shutter, CMOS sensor (Monochrome)
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Quick Info for the CIS VCC-24CXP7M
| Camera Series: | CXP |
|---|---|
| FPS: | 11 |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | 24 MP |
| Signal System: | Monochrome |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
