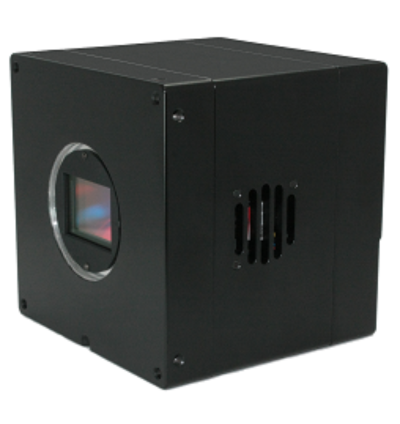

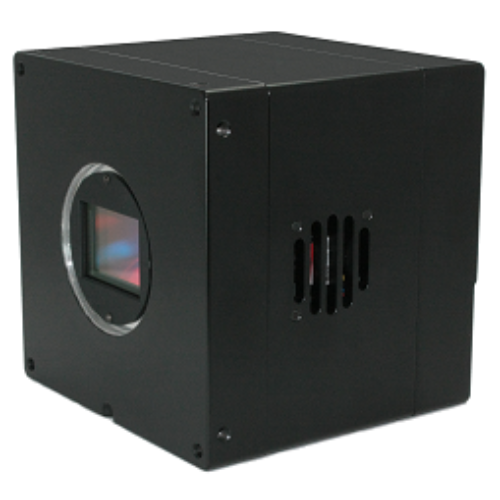

The VCC-250CXP1R camera boasts an impressive resolution of 250 million pixels and features a compact size of 100mm (H) x 100mm (W) x 95.6mm (D). The VCC-250CXP1R supports data transfers of up to 40m using CXP-6. Equipped with essential functions for Machine Vision applications, including trigger shutter, ROI, Gain, shading correction, black level adjustment, noise filter function, and strobe pulse control function. It is suitable for a wide range of applications, including Machine Vision inspection systems, measurement, archiving, research and observation, as well as medical and life science imaging systems.
TECHNICAL INFORMATION:
- Rolling shutter, CMOS sensor
- CoaXPress CXP-6
- 4 lanes
- PoCXP
- Approx. 40m of Max. cable length at CXP-6
- ROI
- Exposure and Gain settings
- External trigger mode
- GenICam complied
- M48 mount
Quick Info for the CIS VCC-250CXP1R
| Camera Category: | - |
|---|---|
| Camera Series: | CXP |
| Format: | APS-H |
| FPS: | 5 |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | 250 MP |
| Sensor: | - |
| Shutter: | Rolling |
| Signal System: | Color |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
