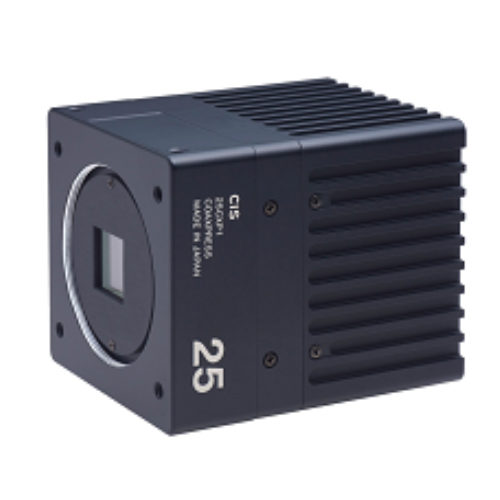

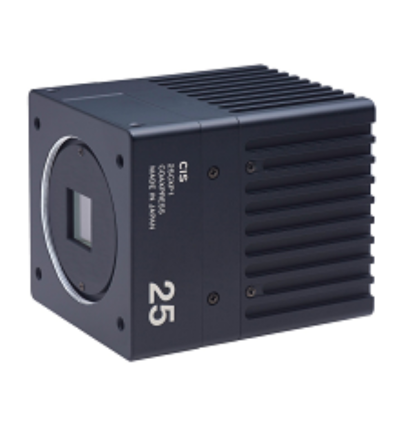

CIS VCC-25CXPHSM-F Camera

The VCC-25CXPHSM-F high-speed camera offers a remarkable 150fps frame rate and a 25M resolution, a CXP interface, and a CMOS sensor featuring a 1.1" global shutter type. Excelling in long-distance data transmission, reaching approximately 24m with CXP12 and about 40m with CXP6, the VCC-25CXPHSM-F is ideal for short-range inspection such as liquid crystal device and semiconductor wafer inspection but also excels in measurement systems, robot vision, and other Machine Vision applications

TECHNICAL INFORMATION:

• 25M pixels resolution 150fps high speed output
• CXP-12×4, CXP-12×1
• 1.1 type global shutter CMOS sensor
• With M48-C conversion ring, C mount lenses can be used.
• Long distance data transmission (24m with CXP12, 40m with CXP6)
• Transmission band 12.5Gbps, 50 Gbps with 4 lanes output
• Multifunction: External trigger, ROI (vertical 16 area), defective pixels correction, shading correction, binning (only for B/W model), shutter control, black level correction, gamma compensation, and more
• Available with or without heat sink.

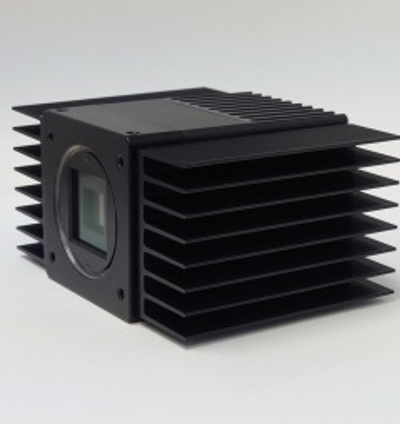

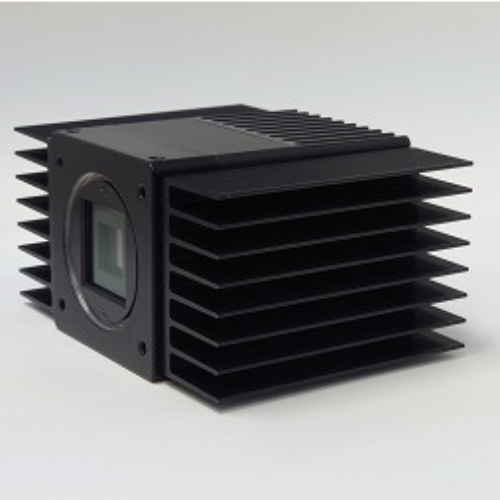

• With heat sink: VCC-25CXPHSM-F, VCC-25CXPHSR-F (65mm(H) x 125mm(W) x 93.3mm(D))
• Without heat sink:VCC-25CXPHSM, VCC-25CXPHSR (65mm(H) x 65mm(W) x 93.3mm(D))
