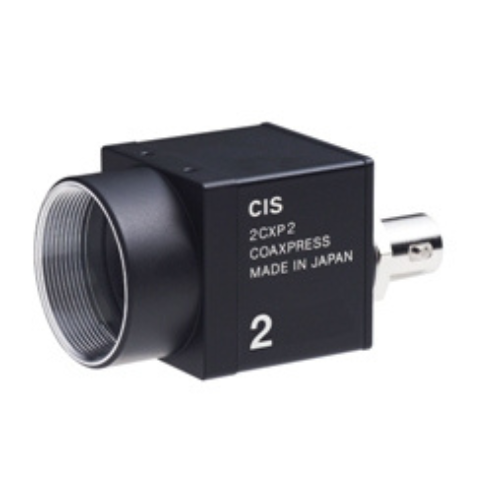

CIS VCC-2CXP2M Camera

This compact, cost-effective CXP I/F camera uses a 2/3 type global shutter CMOS sensor, supporting 100m data transmission at CXP-1 speed. Despite its 29mm cubic size, it offers 2M pixel resolution and 84.5fps frame rate at CXP-3. Equipped with essential features like external trigger mode, adjustable exposure and gain settings, five preset ROIs, sub-sampling, black level and shading corrections, and defective pixel correction, it's suitable for Factory Automation and machine vision applications.

TECHNICAL INFORMATION:

• Compact housing; 29mm cubic in size
• Global shutter type CMOS sensor (Monochrome)
• CoaXPress Ver. 1.0
• CXP-1 / CXP-2 / CXP-3
• Maximum cable length Approx. 100m (CXP-1 lane), Approx. 40m (CXP-3 lane)
• Partial scan function(ROI)
• Sub-sampling
• Exposure time, Gain setting
• External trigger operation(Fixed trigger shutter mode/Pulse width trigger shutter mode)
• Maximum cable length approx. 100m (CXP-1 lane), approx. 40m (CXP-3 lane)
• GenICam compliance
