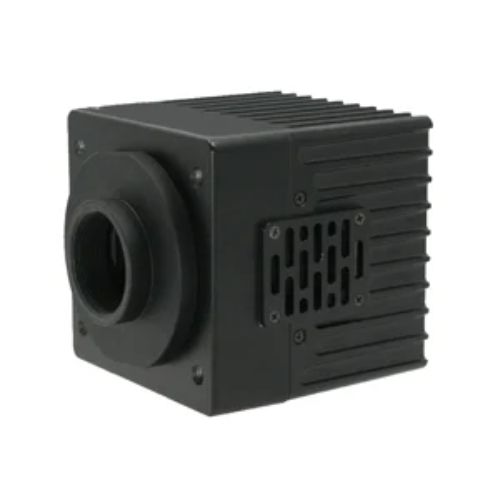

The VCC-5U101SW is a high-performance SWIR camera designed for industrial inspection, featuring a 1/2.8-inch global shutter sensor with 5.2 MP resolution to capture both visible and SWIR images in the 400 nm to 1700 nm range. It supports external trigger, ROI, and defect pixel correction for precise imaging. With a USB 3.2 interface, it eliminates the need for a frame grabber, enabling image transmission, control, and power through a single cable. Ideal for semiconductor, food, pharmaceutical, and material inspection, it offers a cost-effective solution for advanced imaging applications.
TECHNICAL INFORMATION:
- Detects wavelengths from 400 nm to 1700 nm
- 65 mm square body
- Various functions: external trigger, ROI, defect pixel correction, and more
- USB 5 Gbps / 10 Gbps
- USB 3.2 Gen 2x1
- Single USB cable for image transmission, camera control, and power supply
- C-mount
- Export Control Notice: SWIR cameras are classified as controlled goods under export regulations (Export Control Order No. 10(4) / Ministerial Ordinance No. 9, Article 8, Item (10)). Please complete the necessary procedures when exporting outside Japan.
Quick Info for the CIS VCC-5U101SW
| Camera Category: | CXP |
|---|---|
| Camera Series: | CXP |
| FPS: | 131 |
| Interface: | USB3 Vision |
| Manufacturer: | CIS |
| Resolutions: | 5.2 MP |
