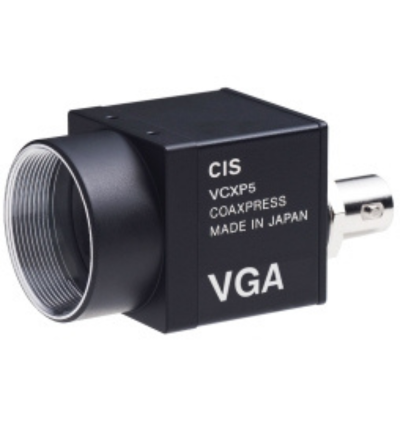

The compact, cost-efficient CXP I/F camera leverages a 1/2.9 type Sony Pregius CMOS sensor to deliver exceptional performance. It boasts the capability of transmitting data up to 100 meters at the CXP-3 rate. The camera's small footprint, at a 29mm cube, doesn't compromise its impressive VGA resolution and high-speed performance, delivering a frame rate of 523fps. Key functionalities, including an external trigger mode, partial scan mode, exposure adjustment, and gain setting, come pre-configured. This makes the camera an ideal choice for Factory Automation (FA) and machine vision applications.
TECHNICAL INFORMATION:
- Small foot print: 29mm cubic in size
- Global shutter type CMOS sensor
- CoaXPress CXP-3 1 lane
- Max. cable length: Approx. 100m (At CXP-3)
- Partial scan
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Quick Info for the CIS VCC-VCXP5M
| Camera Category: | - |
|---|---|
| Camera Series: | CXP |
| Format: | 1/2.9 |
| FPS: | 523 |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | Under 1 MP |
| Sensor: | Sony IMX287 |
| Shutter: | Global |
| Signal System: | Monochrome |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
