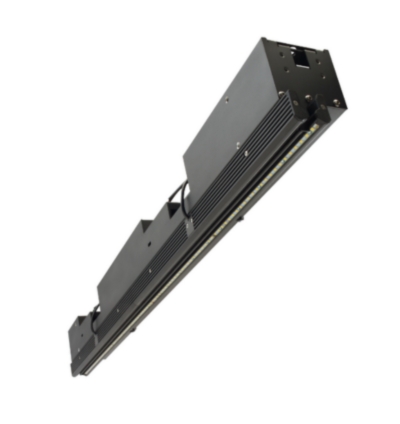

Dalsa AxCIS Color 800 mm Camera

The Teledyne DALSA AxlCIS™ Color 800 mm Contact Image Sensor is a high-speed, high-resolution line scan imaging module featuring 28,603 × 3 resolution, 28 µm pixel size, greater than 76 dB dynamic range, and a 60 kHz line rate. As a fully integrated CIS solution, it combines the sensor, optics, and illumination into a compact, all-in-one design that requires no alignment or calibration, making installation and operation straightforward. Its space-efficient form factor and cost-effective performance make it well suited for demanding machine vision applications such as battery inspection, print inspection, printed circuit board inspection, and continuous web inspection.

TECHNICAL INFORMATION:

• Resolution: 28,603 × 3
• Maximum Line Rate: 180 kHz
• Pixel Size: 28 µm
• Spectrum: Color
• Color / Mono: Color
• Data Interface: Camera Link HS, Fiber Optic
• Dynamic Range: 76 dB
• Gain Range: 1× to 10×
• Peak Wavelength: 650 nm
• Digitization Bit Depth (ADC): 8-bit or 12-bit, selectable
• Dimensions (W × H × L): 75 × 100 × 841.8 mm
• Operating Temperature: 0 °C to +65 °C
