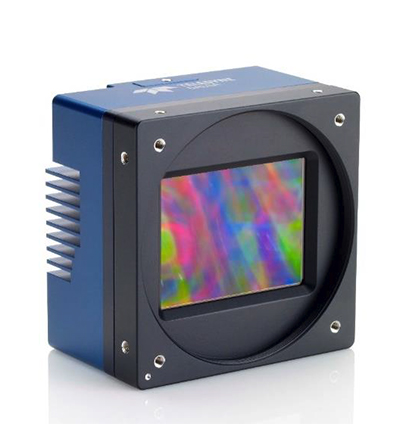

Dalsa Falcon4 86M Camera

Ultra High Resolution and High Speed CMOS Cameras - 86 Megapixels at 16 fps with Global Shutter

Teledyne DALSA’s new generation of color and monochrome area scan cameras—the Falcon4™ 86M—incorporate very large resolutions and faster frame rates, enabling high speed image capture with superb spatial resolution and improved image quality. The Falcon4 camera is the best choice for applications where throughput, resolution and high pixel capacity matter most.

Inside the Falcon4 camera is our leading-edge CMOS sensor, which enables high speeds at very large resolutions. This new production of CMOS sensors builds upon the performance levels of the earlier generations of Falcon cameras and improves on image quality attributes.

The Falcon4 cameras are compliant with GenICam™ and CameraLink HS™ (CLHS) specifications—delivering 8, 10, or 12 bits of data. The M95 thread opening allows for your choice of lens to use.

KEY FEATURES:

• Globral shutter and exposure control
• Faster frame rates through windowing
• Good NIR response
• Built-in FPN and PRNU correction
• CLHS and GenICam compliant

TYPICAL APPLICATIONS:

• Aerial imaging
• Aerial reconnaissance
• Surveillance
• Machine vision

TECHNICAL INFORMATION:

• 10720 × 8064, 6 µm pixels
• 64 × 48 mm active area
• Medium format lenses
• More pixels than 40 HD Screens
• 129 MB/frame (12 bit)
• 2.1 GB/s @ 16 fps (12 bit)
