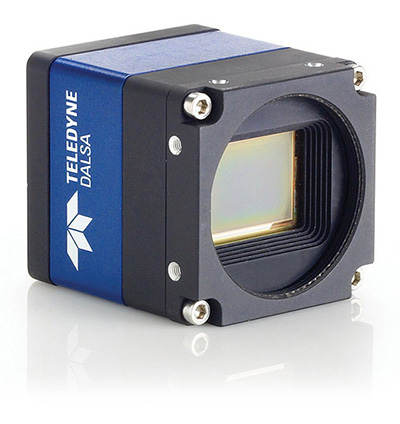

Dalsa TS 4096 Camera

The Dalsa Genie TS-M4096 uses an advanced Teledyne DALSA CMOS monochrome sensor with a resolution of 4096 x 3072.

Teledyne DALSA’s proprietary sensor technology allows for image capture rates of 10 fps in 12 megapixel resolution with a true global shutter while maintaining exceptional image quality.

The Genie TS-M4096 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genie cameras, the TS-M4096 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

• Uses standard PC Ethernet port & hardware
• Supports cable lengths up to 100 m (CAT-5e or CAT-6)
• Simplified set-up with field proven Sapera Essential software featuring CamExpert
• Engineered to accommodate industrial environment with a Ruggedize, screw mount, RJ-45 connector
• Auto-Iris (Video, DC or Motorized)

PROGRAMMABILITY:

• Higher frame rates achievable in partial scan mode
• Global electronic shutter with exposure Control
• Auto-Brightness Feature
• Extended Dynamic Range Function
• On-board flat-field correction
• Multi-Exposure Feature
• Programmable LUTs
• On-board Image compression
• Transfer On-Demand Function
• IEEE1588 Precise time Protocol

TYPICAL APPLICATIONS:

• Electronics manufacturing inspection
• Industrial metrology
• Intelligent traffic systems

TECHNICAL INFORMATION:

• Active Resolution: 4096 x 3072
• Frame Rate: 10 fps in Free-running / 12fps in Burst Mode
• Pixel Size: 6.0 µm
• Data Format: 8 and 10-bits
• Exposure Control: Automatic, Programmable, or via External Trigger
• Dynamic Range: 60 dB
• Gain Control: Automatic, Manual and One-Push Gain modes
• Output: Gigabit Ethernet, also supports 100 Mbps
• I/O Ports: 4 opto-isolated input, 4 opto-isolated output, 3 motorized Control, RS-485 Port, and RS-232 Port
• Lens Mount: M42x1
• Size: 49 mm x 49 mm x 54 mm
• Mass: TBD
• Operating Temp: 0°–50°C
• Power Supply: 12 to 24V or Power Over Ethernet (POE)
• Power Dissipation: ~4 to 5W
• Data Connector: Standard or Screw mount RJ-45
• Power and I/O: Micro-D 25-pin and 4-pin auto-Iris
• Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC (Pending)
• Camera Specification: GigE Vision v2.0 Compliant (Pending)
• Software Platform: Teledyne DALSA Sapera LT or 3rd Party Genicam Compliant SDK
