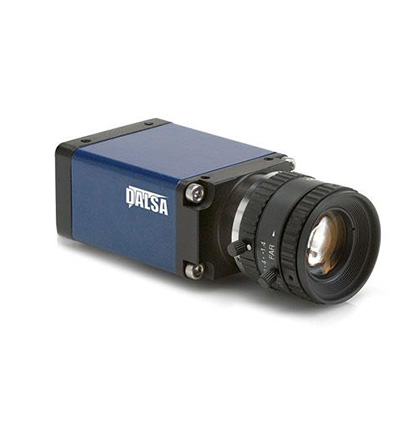

Dalsa HC1400 Camera

Dalsa Genie Series HC1400-1 offers unprecedented high speed image acquisition.

The Dalsa Genie HC1400 camera has uncompromised signal-to-noise ratio, significantly optimizing the opportunity for increased yield. DALSA’s proprietary sensor technology allows for image capture rates of 75 fps in 1400 x 1024 resolution while maintaining exceptional image quality. The Genie HC1400’s gigabit Ethernet interface takes full advantage of this Genie’s high frame rate by transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genies, the HC1400 is based on the AIA (Automate Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES

•  Resolution: 1400 x 1024
• Total Data Rate: 92 MB/s
• Max. Frame Rate: 75 fps
• Pixel Size: 7.4 µm
• Output Format: GigE Vision
• Size : 44 x 29 x 67 mm
• Mass: ~115 g
• C Mount

TECHNICAL INFORMATION:

• Active Resolution: 1400 x 1024
• Frame Rate: 75 fps
• Pixel Size: 7.4 µm
• Data Format: 8 & 10 bits Raw Bayer
• Exposure Control: Programmable, or via External Trigger
• Dynamic Range: 48 dB
• Nominal Gain Range: 0 dB to +12 dB
• Output: Gigabit Ethernet, also supports 100 Mbps
• I/O Ports: 2 opto-isolated input, 2 opto-isolated output
• Lens Mount: C
• Size: 44 mm x 29 mm x 67 mm (including lens adapter)
• Mass: ~115 g (without lens)
• Operating Temp: 0°–45°C
• Power Supply: 12 V to 24 V
• Power Dissipation: 4W
• Data Connector: Standard or Screw mount RJ-45
• Power and I/O: Hirose 12-Pin
• Software Platform: DALSA Sapera LT
• GigE Vision Compliant: Yes
• Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
• Part Number: CR-GC00-H140x
