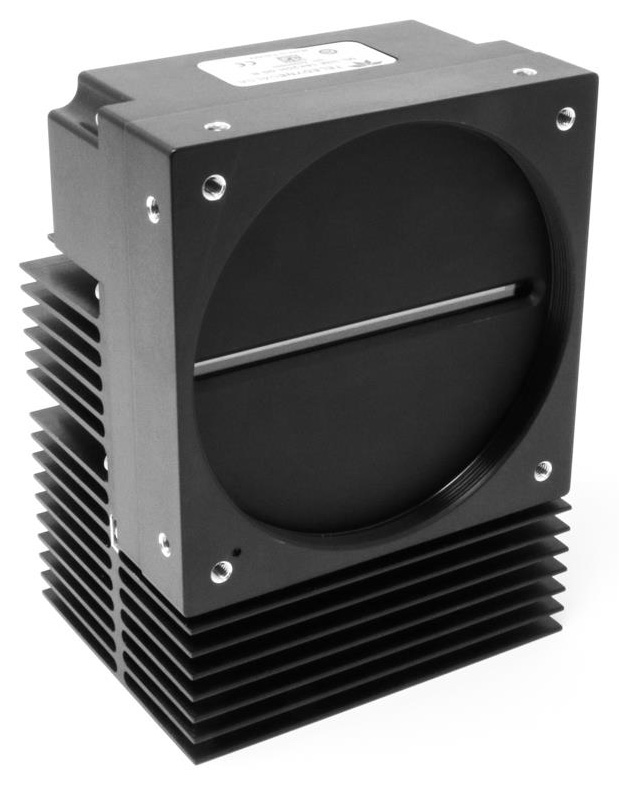

Dalsa Linea Mono 16K CLHS Camera

Introducing the new Linea™ line scan camera.

These cameras deliver the exceptional performance and features found in Teledyne DALSA’s current lineup of high-end cameras.

Based on the most advanced CMOS line scan technology, the camera employs a 16k single line 3.5 μm x 3.5 μm pixel array at a 48 kHz maximum line rate. With excellent sensitivity and speed, Linea surpasses the requirements of demanding applications—such as materials grading and inspection, transportation safety, and general purpose machine vision.

Linea is a compact, light weight and robust camera with many attractive features, including flat-field correction, multiple ROI, multiple user configuration sets, and calibration coefficients for various lighting conditions.

TECHNICAL INFORMATION:

• High speed: up to 48 kHz
• 16,384 pixel resolution
• Low cost and compact
• Camera Link interface
