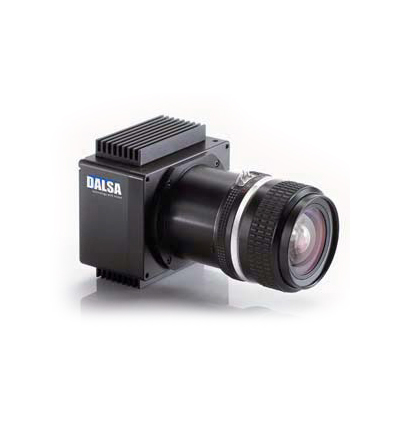

Dalsa Piranha HS 4K Camera

Piranha HS Series: Piranha HS 4K, 36khz

The HS-40-04K40 is a member of the Piranha HS family--DALSA's latest generation of high sensitivity, TDI based cameras. The Piranha HS family maximizes system throughput by providing large resolutions and unmatched throughput.

The 4k model has a line rate up to 36 kHz and a throughput up to 160 MHz. Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controlled.

These cameras are capable of bidirectionality with up to 96 stages of selectability, while preventing overexposure with DALSA's proven 100x antiblooming.

FEATURES:

• Line rate up to 36 kHz
• Up to 160 MHz throughput
• Bidirectional
• Selectable TDI or area mode operation
• Stage selectablity up to 96 stages
• 100x antiblooming
• Camera Link interface

TECHNICAL INFORMATION:

• Resolution: 4096 x 96 TDI
• Data Rate: 160 megapixels/second, selectable
• Max. Line/Frame Rate: 36 kHz
• Pixel Size: 7 µm
• Data Format: 8, 12 bit
• Output: Base, Med Camera Link
• Lens Mount: M42 x 1, F mount
• Responsivity: 1170 DN/(nJ/cm²)broadband,8 bit,10 dB
• Dynamic Range: 63 dB
• Nominal Gain Range: ±10 dB
• Size: 85 mm x 85 mm x 55.4 mm
• Mass: <500g
• Operating Temp: 0 °C to 50 °C
• Power Supply: 12 V to 15 V
• Power Dissipation: <10 W
• Regulatory Compliance: CE and RoHS (pending)
• Control: MDR26 Camera Link
• Data: Shared with control
• Power: Hirose HR10 6 pin
