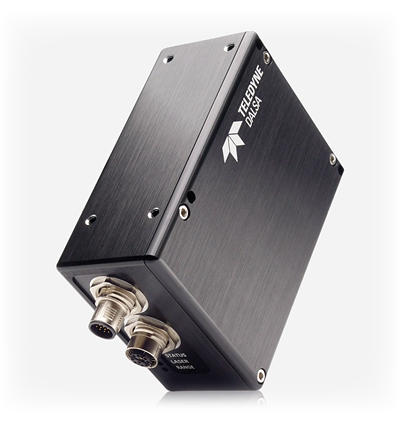

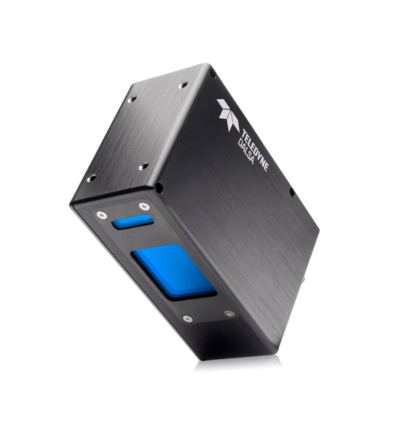

Dalsa Z-Trak2 Laser Profiler

The Z-Trak2 series delivers high-speed, accurate 3D inspection at 5,000 profiles per second with onboard real-time processing, making it ideal for high-throughput applications such as automotive panel inspection, pallet scanning, and road surface profiling. Each system features a 1,700 mm horizontal field-of-view and uses an eye-safe blue or red laser in Class 2M or 3R, enabling precise measurement on reflective or textured surfaces while ensuring operator safety. All models support multi-sensor synchronization and content-based triggering, and include Z-Trak 3D Apps Studio, Z-Expert, and Sherlock8 for configuration, inspection development, and PLC integration.

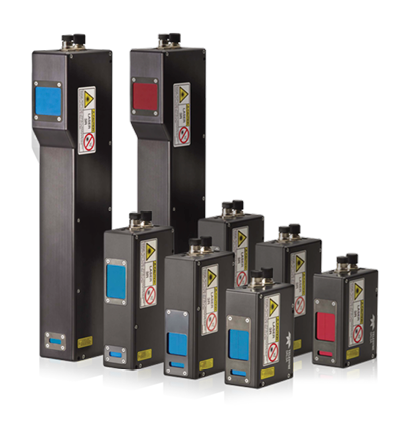

Part numbers include 3D-L2ES-4052L-T10040100, 3D-L2ES-6602L-T10040100, 3D-L2EM-4052L-T10100100, 3D-L2EM-6602L-T10100100, 3D-L2EL-4052L-T10180100, 3D-L2EL-6602L-T10180100, 3D-L2EL-4052H-T10675100, and 3D-L2EL-6602H-T10675100, offering scalable options for standard, mid-range, and rugged industrial environments. With advanced optics, simplified integration, and cost-efficient performance, Z-Trak2 systems deliver precise 3D measurements without compromising speed or flexibility.

TECHNICAL INFORMATION:

Techincal Information:

• Z-Range (mm): 40, 100, 180, 675

• Stand-off (mm): 79.5, 245, 598, 725

• Data Interface: 1-GigE (for all models)

• Z-Resolution (NFOV–FFOV) (µm): 8.6–11.4, 18.7–25.0, 52.3–64.7, 191.6–343.9

• Horizontal Field-of-View (NFOV–FFOV) (mm): 83–109, 153–204, 366–452, 959–1720

• X-Resolution (NFOV–FFOV) (µm): 57–75, 105–140, 251–310, 657–1179

• Repeatability (NFOV–FFOV) (µm): 1.0–1.5, 3.0–4.0, 6.0–20.0, 10.0–30.0

• Linearity: <0.02% (all models)

• Laser Wavelength and Color: 405 nm (Blue) for 40 mm and 100 mm Z-range models; 660 nm (Red) for 180 mm and 675 mm Z-range models

• Case Size: T20, T30, T40, T40
