Hamamatsu C11440-52U30 Camera

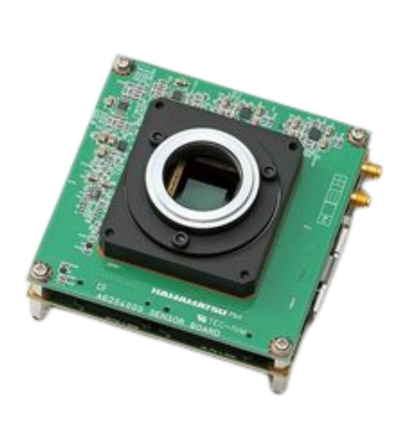

STEMMER IMAGING USA offers the C11440-52U30, a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.
The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.

TECHNICAL INFORMATION:

• Resolution: 4.0 megapixels
• Readout noise: 2.3 electrons (rms), 1.6 electrons (median)
• Frame rate: 30 frames/s (2048 × 2048)
• Quantum efficiency: 82 % (Peak QE)

Applications

• DNA sequence
• Gene expression
• Imaging cytometry
• High content screening
• Live cell imaging
• Genomic and proteomic analysis and diagnostics
• X-ray I.I., X-ray scintillator readout
