illunis CMV-71 MP Camera Link Camera
Available Variations:
CMV71C-CL
CMV71M-CL
CMV71MHG-CL
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Available with the Following Options:
| Type | Mounts | Filters | |||
|---|---|---|---|---|---|
| Color | M58 | F | Canon EF | Clear | IR/UV Cut |
| Mono | M58 | F | Canon EF | Clear | IR/UV Cut |
| Mono High Grade | M58 | F | Canon EF | Clear | IR/UV Cut |

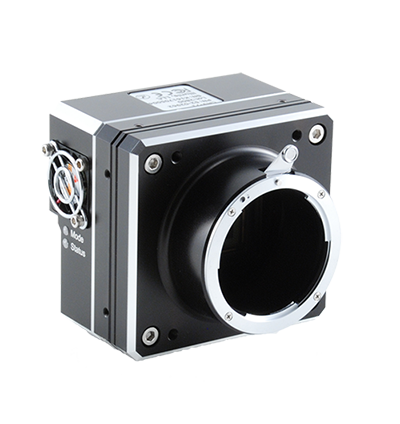

The newly designed CMV-71 is a rolling shutter CMOS digital camera with an astounding 71 million pixels. The 71MP offers outstanding quality by using the ams/CMOSIS CHR71000ES–1E5M1PA, CHR71000ES-1E5C1PA, or CHR71000HGES-1E5M1PA sensor.
TECHNICAL INFORMATION:
- 10,000 x 7096 3.1μm active pixels
- Image Storage in Internal Memory
- Flat Field and Shading Correction
- Rolling Shutter CMOS
- Windowing ROI capability
- Dynamic range 64dB
- 8 Tap readout at up to 42.5MHz each (340Mpix/sec)
- 12 bits, 4.22 fps at full resolution, faster when windowed
- Field-updatable firmware
- Optional: High-Grade sensor with no row or column defects
- M58/OEM, Nikon F and Canon EF lens mounts
Quick Info for the illunis CMV71C-CL
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | illunis Area Scan |
| FPS: | 4.22 |
| Interface: | Camera Link |
| Manufacturer: | illunis |
| Scanning Mode: | Area Scan |
| Signal System: | Color |
| Technology: | Camera Link Cameras |
Quick Info for the illunis CMV71M-CL
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | illunis Area Scan |
| FPS: | 4.22 |
| Interface: | Camera Link |
| Manufacturer: | illunis |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | Camera Link Cameras |
Quick Info for the illunis CMV71MHG-CL
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | illunis Area Scan |
| FPS: | 4.22 |
| Interface: | Camera Link |
| Manufacturer: | illunis |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome High Grade |
| Technology: | Camera Link Cameras |
