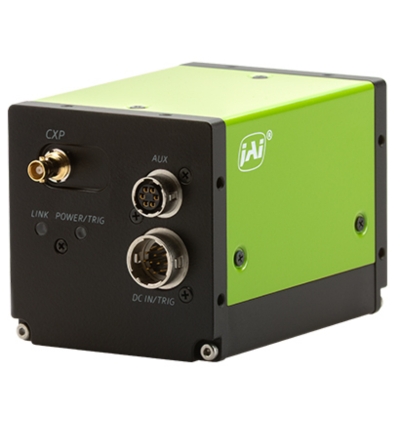

JAI AP-5100T-CXPA Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

The JAI Apex AP-5100T-CXPA is a high-speed, high-resolution industrial area-scan camera built on a 3-CMOS RGB prism design, capturing independent red, green, and blue images at 5.1 MP each while reaching up to 75 fps. Because it records true RGB data rather than reconstructing color through a Bayer pattern, it delivers cleaner color separation, finer detail, and more dependable color-based detection in precision inspection environments. It’s well suited for challenging applications such as display evaluation, PCB and electronics inspection (including MLCCs and small components), and rigorous quality control in food and pharmaceutical production where accurate differentiation is essential.

TECHNICAL INFORMATION:

Product Line: Apex Series
Model: AP-5100T-CXPA
Camera Type: Area Scan (Color, Visible)
Sensor Architecture: 3-CMOS RGB prism-based (true raw R, G, B)
Sensors: 3× Sony IMX548 Pregius S (BSI)
Resolution (W × H): 2,464 × 2,056 px (5.1 MP)
Frame Rate: Up to 75 fps
Shutter Type: Global Shutter
Optical Format: 1/1.8 inch
Pixel Size: 2.74 µm × 2.74 µm
Interface: CoaXPress 2.0 (CXP-12), 1-lane with PoCXP; trigger over CXP supported
ROI: Single + Multi-ROI (with ROI shading correction)
Channel Controls: Independent exposure and analog gain per R/G/B channel
On-Camera Processing: Xscale sub-pixel scaling; lateral chromatic aberration correction
Color Tools: Color space conversion (RGB to HSI, CIE XYZ, sRGB, Adobe RGB)
Durability: Shock 50G / Vibration 3G

Request a Quote

Quick Info for the JAI AP-5100T-CXPA

Camera Category:	Area Scan
Camera Series:	Apex
FPS:	75
Interface:	5 GigE
Manufacturer:	JAI
Resolutions:	5.1 MP
Scanning Mode:	Global Shutter
Signal System:	Color
