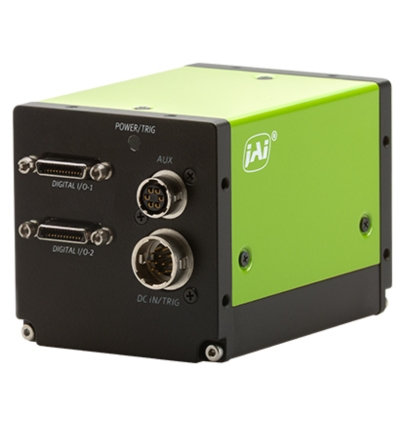

JAI AP-5100T-MCL Camera

The JAI Apex AP-5100T-MCL is a high-resolution industrial area-scan camera that uses a 3-CMOS RGB prism design to capture separate red, green, and blue images at 5.1 MP each, running up to 55 fps for fast, consistent color imaging. By producing true RGB data rather than reconstructing color from a Bayer pattern, it delivers stronger color separation, finer spatial detail, and more dependable detection when color differences are subtle. It’s a strong choice for precision inspection work such as display evaluation, PCB and electronics checks (including MLCCs and small components), and quality control in food and pharmaceutical production where accurate differentiation matters.

TECHNICAL INFORMATION:

Product Line: Apex Series
Model: AP-5100T-MCL
Camera Type: Area Scan (Color, Visible)
Sensor Architecture: 3-CMOS RGB prism-based (true raw R, G, B)
Sensors: 3× Sony IMX548 Pregius S (BSI)
Resolution (W × H): 2,464 × 2,056 px (5.1 MP)
Frame Rate: Up to 55 fps
Shutter Type: Global Shutter
Optical Format: 1/1.8 inch
Pixel Size: 2.74 µm × 2.74 µm
Interface: Mini Camera Link (Camera Link v2.1 compliant)
ROI: Single + Multi-ROI (with ROI shading correction)
Channel Controls: Independent exposure and analog gain per R/G/B channel
On-Camera Processing: Xscale sub-pixel scaling; lateral chromatic aberration correction
Color Tools: Color space conversion (RGB to HSI, CIE XYZ, sRGB, Adobe RGB) + color temperature presets
Binning: 2×1, 1×2, 2×2
Durability: Shock 50G / Vibration 3G
