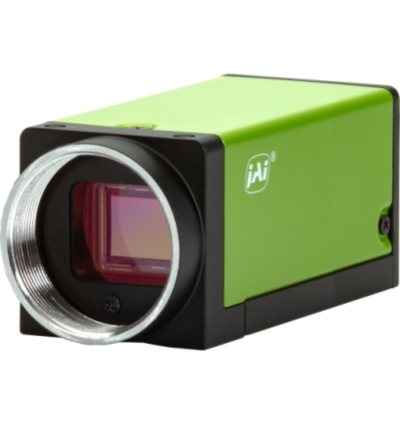

JAI GO-8105M-5GE-UV Camera

The JAI GO-8105M-5GE-UV is a high-resolution, UV-sensitive area scan camera built around a Sony Pregius S backside-illuminated (BSI) sensor that delivers exceptional sensitivity across the UVA, UVB, and UVC spectrum. With quantum efficiency exceeding 25% at 200 nm and reaching 40–50% across most of the UVA and UVB range, it supports demanding ultraviolet imaging applications with high fidelity. The camera captures 8.1-megapixel monochrome images at up to 66 fps via a 5GBASE-T GigE Vision interface, which automatically adapts to 2.5GBASE-T or 1000BASE-T networks based on available bandwidth.

TECHNICAL INFORMATION:

• Series / Model: Go Series · GO-8105M-5GE-UV
• Type: Area scan, monochrome
• Spectrum: Visible + UV
• Resolution: 8.1 MP (2856 × 2848)
• Frame Rate: Up to 66 fps
• ROI: Supported
• Interface: 5 Gbps GigE Vision (PoE)
• Sensor: Sony IMX487-AAMJ CMOS, global shutter
• Optical Format: 2/3?
• Pixel Size: 2.74 µm
• Sensor Area: 7.8 × 7.8 mm (11.1 mm diagonal)
• Video Output: 8 / 10 / 12-bit
• Lens Mount: C-mount
• Dimensions / Weight: 29 × 29 × 68 mm · 94 g
• Power: 5.4 W
• Operating Temperature: -5 °C to +45 °C
