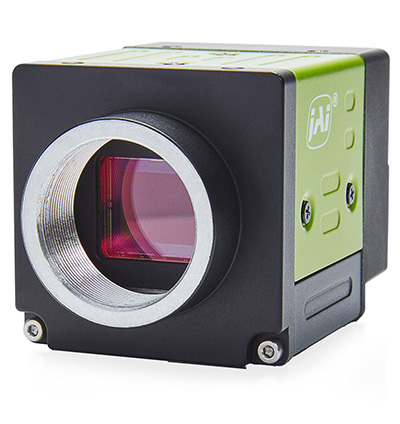

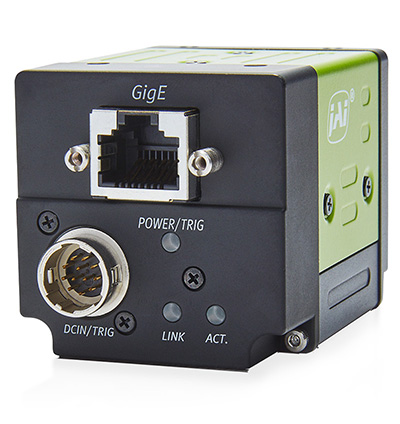

JAI SP-12401-PGE Camera

Spark Series SP-12401C-PGE 12.4-megapixel area scan camera

The SP-12401C-PGE provides 12-megapixel color resolution at up to 9.3 fps over a standard GigE Vision interface. Featuring the Sony Pregius IMX304 CMOS imager, it delivers outstanding low-noise image quality suitable for a wide range of high resolution machine vision applications.

TECHNICAL INFORMATION:

• High resolution 12-megapixel CMOS imager (global shutter)
• 9.3 fps at full resolution
• 3.45 μm square pixels
• User selectable ROI and multi-ROI functions
• Horizontal and vertical binning (monochrome model) for increased sensitivity
• Color model provides raw Bayer output or 5x5 in-camera color interpolation
• Edge enhancement function
• Color enhancer and RGB/HSI/XYZ color space conversion functions on color model
• Excellent shock and vibration resistance
• 8/10/12-bit* output over GenICam-compliant GigE Vision 2.0 interface
• C-mount lens mount
