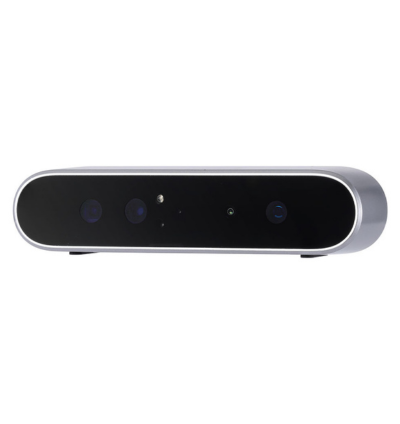

ORBBEC Astra 2 Camera

The Orbbec Astra 2 is a structured light 3D camera that provides high-quality depth sensing with a range of 0.6 – 8 m. With resolutions up to 1600 × 1200 for depth and 1080p for RGB, the Astra 2 integrates a custom Orbbec ASIC for on-device depth processing, a built-in IMU, and support for multi-camera synchronization. Its USB-C 3.2 Gen 1 connection enables simple setup, while low power consumption makes it ideal for interactive systems, robotics, and healthcare.

TECHNICAL INFORMATION:

• Depth technology: Structured light with custom Orbbec ASIC

• Depth range: 0.6 – 8 m

• Depth resolution: up to 1600 × 1200 @ 30 fps

• RGB resolution: 1920 × 1080 @ 30 fps

• Shutter types: Global (depth), rolling (RGB)

• Multi-camera sync and trigger support

• Integrated IMU

• Power consumption: < 3 W, via USB-C

• Operating environment: Indoor use
