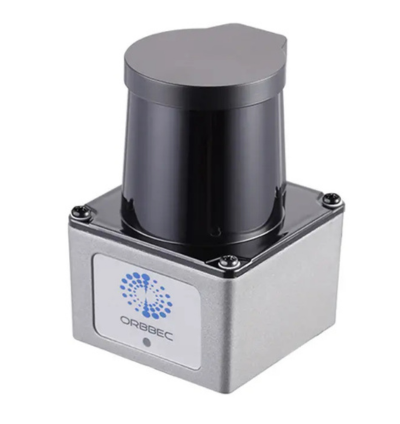

The Orbbec Pulsar SL450 is a cost-effective single-line dToF LiDAR sensor tailored for robotic navigation. Offering a 270° scanning angle, up to 45 m range, and high-frequency 72 kHz measurements, it delivers accurate mapping and obstacle detection. With IP65 protection, fine angular resolution, and integration support for ROS/ROS2, the SL450 is optimized for mobile robots, smart vehicles, and warehouse automation.
TECHNICAL INFORMATION:
-
Technology: Direct Time of Flight (dToF)
-
Range: up to 45 m @ 90% reflectivity
-
Accuracy: ±20 mm, precision =15 mm
-
Frequency: 72 kHz
-
Angular resolution: 0.075° – 0.2° (selectable)
-
Scanning angle: 270°
-
Wavelength: 903 ± 10 nm
-
Protection: IP65 rated
-
Integration: Supports Windows, Linux, ROS/ROS2
Quick Info for the ORBBEC Pulsar SL450
| Camera Series: | Pulsar |
|---|---|
| Manufacturer: | ORBBEC |
| Technology: | 3D/ToF |
