Pixelink PL-D721P Camera
Available Variations:
PL-D721PMU
PL-D721PMU-BL
PL-D721PMU-T
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

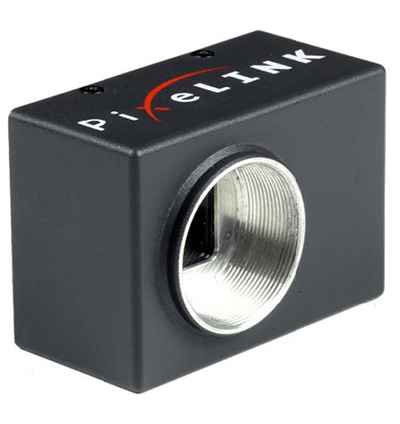

Pixelink offers the PL-D721P camera model based on an ON Semi Python 1300 CMOS global shutter sensor.
The PL-D721P cameras are based on an ON Semi Python 1300 CMOS global shutter sensor with a 1/2” sensor size. USB 3.0 interface links together the benefits of high frame rate CMOS technology with the high-speed data throughput of USB 3.0 technology.
The PL-D721P camera provides low noise images for outstanding value for a broad range of industrial applications.
.png)
TECHNICAL APPLICATIONS
- Part inspection
- Strength testing
- Metrology
- Biometrics
- Medical Imaging
- PCB & Flat Panel Display Inspection

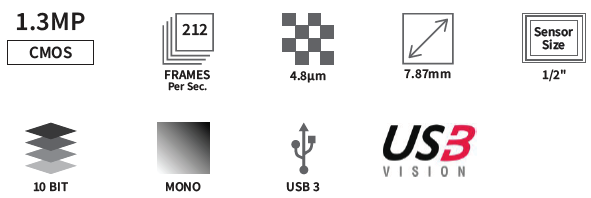

TECHNICAL INFORMATION:
- 1 MP
- ON Semi Python 1300
- 1/2" Sensor Size
| PL-D721PMU | PL-D721PMU-BL | PL-D721PMU-T | |
| Bit Depth | 10-bit, 8-bit | ||
| Camera Type | Machine Vision | ||
| Color Space | Monochrome | ||
| Frame Rate | 212 | 210 | |
| Housing | Enclosed | Board Level | Enclosed |
| Interface | USB 3.0 | ||
| Lens Mount | C-Mount, CS-Mount, S-Mount | ||
| Pixel Pitch | 4.8µm | ||
| Resolution | 1280 x 1024 | ||
| Sensor Diagonal | 7.87 mm | ||
| Sensor Model | ON Semi Python 1300 | ||
| Sensor Size | 1/2" | ||
| Sensor Type | CMOS | ||
| Shutter Type | Global | ||
Quick Info for the Pixelink PL-D721PMU
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 212 |
| Interface: | USB 3.0 |
| Manufacturer: | Pixelink |
| Resolutions: | 1280 x 1024 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
Quick Info for the Pixelink PL-D721PMU-BL
| Camera Category: | Board Level |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 212 |
| Interface: | USB 3.0 |
| Manufacturer: | Pixelink |
| Resolutions: | 1280 x 1024 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
Quick Info for the Pixelink PL-D721PMU-T
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 212 |
| Interface: | USB 3.0 |
| Manufacturer: | Pixelink |
| Resolutions: | 1280 x 1024 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
