PixeLINK PL-D795 Camera
Available Variations:
PL-D795CU
PL-D795CU-BL
PL-D795CU-T
PL-D795MU
PL-D795MU-BL
PL-D795MU-T
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Pixelink offers the PL-D795, a camera based on a Sony IMX264 CMOS global shutter sensor.
The PL-D795 cameras are based on a Sony IMX264 CMOS global shutter sensor with a 2/3” sensor size. USB 3.0 interface links together the benefits of high frame rate CMOS technology with the high-speed data throughput of USB 3.0 technology.
The PL-D family of cameras links together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology. The PL-D795 camera provides low noise images for outstanding value for a broad range of industrial applications.
TYPICAL APPLICATIONS
- Parts inspection
- Strength Testing
- Metrology
- Biometrics
- Medical Imaging
- PCB & Flat Panel Display Inspection

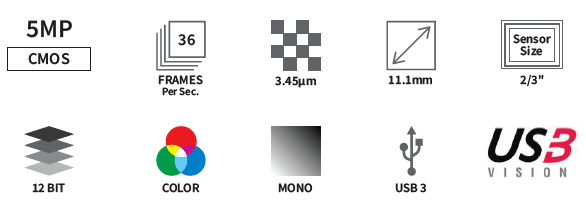

TECHNICAL INFORMATION:
- 5 MP
- Sony IMX264
- 2/3" Sensor Size
| PL-D795CU | PL-D795CU-BL | PL-D795CU-T | PL-D795MU | PL-D795MU-BL | PL-D795MU-T | |
| Bit Depth | 12-bit, 8-bit | 12-bit, 8-bit | ||||
| Camera Type | Machine Vision | Machine Vision | ||||
| Color Space | Color | Mono | ||||
| Frame Rate | 36 | 36 | ||||
| Housing | Enclosed | Board Level | Enclosed | Enclosed | Board Level | Enclosed |
| Interface | USB 3.0 | USB 3.0 | ||||
| Lens Mount | C-Mount, CS Mount | C-Mount, CS Mount | ||||
| Pixel Pitch | 3.45µm | 3.45µm | ||||
| Resolution | 2448 x 2048 | 2448 x 2048 | ||||
| Sensor Diagonal | 11.1 mm | 11.1 mm | ||||
| Sensor Model | Sony IMX264 | Sony IMX264 | ||||
| Sensor Size | 2/3" | 2/3" | ||||
| Sensor Type | CMOS | CMOS | ||||
| Shutter Type | Global | Global | ||||
Quick Info for the PixeLINK PL-D795CU
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Color |
| Technology: | C Mount Lenses |
Quick Info for the PixeLINK PL-D795CU-BL
| Camera Category: | Board Level |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Color |
| Technology: | C Mount Lenses |
Quick Info for the PixeLINK PL-D795CU-T
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Color |
| Technology: | C Mount Lenses |
Quick Info for the PixeLINK PL-D795MU
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
Quick Info for the PixeLINK PL-D795MU-BL
| Camera Category: | Board Level |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
Quick Info for the PixeLINK PL-D795MU-T
| Camera Category: | Enclosed |
|---|---|
| Camera Series: | Industrial Vision Cameras |
| FPS: | 36 |
| Interface: | USB 3.0 |
| Manufacturer: | PixeLINK |
| Resolutions: | 2448 x 2048 |
| Scanning Mode: | Area Scan |
| Signal System: | Monochrome |
| Technology: | C Mount Lenses |
