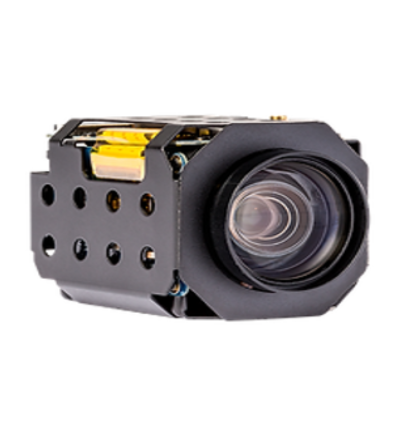

Skoopia 21Z10H Camera

HDMI block camera

TECHNICAL INFORMATION:

• 10x optical zoom
• Full HD HDMI output (1080p60/50/30/25 and 1080i60/50/30/25 and 720p60/50/30/25 and 720i 60/50/30/25)
• Sensor size: 1/2.8" (Sony Starvis Exmor R IMX307)
• Control: RS-485 & UART / VISCA & PELCO-D
• Voltage Input: DC 9V - 15V
• Power: 3 W
• Dimensions: 45mm x 44mm x 67mm
• Fully Sony VISCA compatible and special commands and functions available/possible
• 9-pin FFC (Sony block camera compatible), 30-pin KEL (Sony block camera compatible), MMCX SDI connector (optional)

STEP file to ease mechanical integration as well as full VISCA/PELCO command set for easy electric integration available upon request.

Fully customizable firmware. Dedicated solutions are available for pipe inspection industry and visually impaired / low vision market.

Upgrade connection unit available to ease customer-specific firmware development

Dedicated integration board with  KEL connector to camera,  HDMI type A (for video output), USB (for Rx/TX), Joystick (for direct menu access, zoom, focus), and DC jack (for powering) is available upon request for sampling, but also for larger quantities.
