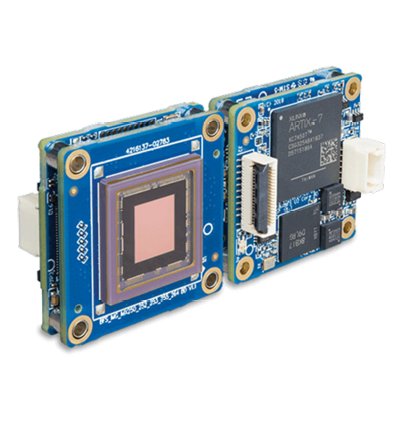

Teledyne BFS Board-level USB3: 5 MP, Color Camera

The Blackfly S Board-Level USB3 (5 MP, Color) delivers advanced machine vision performance in an ultra-compact form factor, ideal for space-restricted embedded applications. Built with the latest CMOS sensor technology, it offers the same robust feature set as the cased version—including high-quality color imaging, on-camera controls, and powerful acquisition capabilities.

Engineered for easy integration, the BFS-U3-50S4C-BD2 is fully compatible with popular single-board computers (SBCs) and system-on-modules (SOMs), enabling OEMs to design smaller, lighter, and more cost-efficient embedded vision systems. With reliable USB3 connectivity and rich feature support, it’s an excellent choice for portable diagnostic equipment, robotics, and custom vision applications.

TECHNICAL INFORMATION:

• Megapixels: 5.0 MP
• Frame Rate: 73 FPS
• Sensor: Sony IMX547
• Acquisition Modes: Continuous / Single Frame / Multi Frame
• Exposure Control: Hardware trigger, programmable via camera API, automatic
• Exposure Range: 10 µs to 30 seconds
• Flash Memory: 6 MB non-volatile memory
• Gain Control: Manual, automatic (AGC)
• Image Buffer: 240 MB
• Image Processing: Color correction matrix, gamma, lookup table, saturation, and sharpness
• Partial Image Modes: Pixel binning, decimation, ROI
• User Sets: 2 user configuration sets for custom camera settings
• White Balance: Manual, automatic (AWB)
