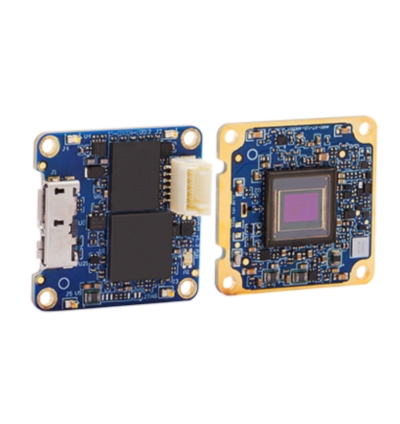

Teledyne DR Board-level USB3: 5 MP, Mono, Back Camera

The DR Board-level USB3: 5 MP, Mono, Back Camera is a compact, high-precision imaging solution designed for embedded systems, handheld devices, and multi-camera setups. Its modular design and lightweight form factor enable easy integration into space-constrained environments, while the 5 MP monochrome sensor delivers sharp, detailed images for applications like biometrics, 3D scanning, and optical inspection. With S-mount lens compatibility and a fast USB3 interface, this camera offers flexible configuration and reliable performance across manufacturing, medical, and automation use cases.

TECHNICAL INFORMATION:

• Frame Rate: 49 FPS
• Configuration: Board-level, Back Connector
• Sensor: onsemi AR0521
• Acquisition Modes: Continuous / Single Frame / Multi Frame
• Exposure Control: Hardware trigger, programmable via camera API, automatic
• Exposure Range: 9 µs to 0.5 seconds
• Flash Memory: 6 MB
• Gain Control: Manual, automatic (AGC)
• Image Buffer: 96 MB
• Image Processing: Gamma, lookup table
• Partial Image Modes: Pixel binning, ROI
• User Sets: 1
• White Balance: Manual, automatic (AWB)
