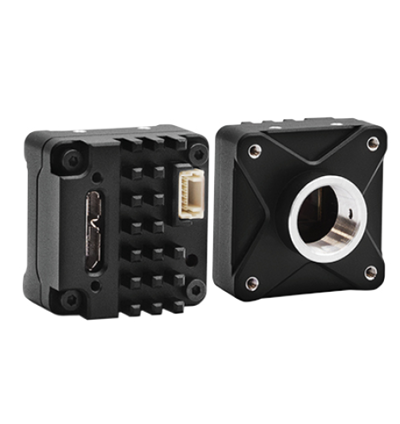

Teledyne DR USB3: 5 MP, Color, S-mount, Back Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
The DR USB3: 5 MP, Color, S-mount, Back camera is a compact, high-resolution imaging solution designed for color-critical applications such as machine vision, diagnostics, and quality inspection. Featuring a 5 MP color sensor, S-mount lens compatibility, and a USB3 interface for fast data transfer, it offers flexible integration into embedded systems, handheld devices, and space-constrained setups across medical, industrial, and automation environments. Its modular, lightweight design supports multi-camera configurations and makes it ideal for scalable, high-efficiency imaging systems. The camera’s reliable performance and adaptability make it a strong choice for both prototype development and volume production.
TECHNICAL INFORMATION:
- Frame Rate: 49 FPS
- Configuration: Cased, Back Connector, S-mount
- Sensor: onsemi AR0521
- Acquisition Modes: Continuous / Single Frame / Multi Frame
- Exposure Control: Hardware trigger, programmable via camera API, automatic
- Exposure Range: 9 µs to 0.5 seconds
- Flash Memory: 6 MB
- Gain Control: Manual, automatic (AGC)
- Image Buffer: 96 MB
- Image Processing: Gamma, lookup table
- Partial Image Modes: Pixel binning, ROI
- User Sets: 1
- White Balance: Manual, automatic (AWB)
Quick Info for the Teledyne DR USB3: 5 MP, Color, S-mount, Back
| Camera Category: | Area Scan |
|---|---|
| Camera Series: | sCMOS |
| FPS: | 49 |
| Interface: | USB 3.1 |
| Manufacturer: | Teledyne |
| Resolutions: | 2592 x 1944 |
| Sensor: | ON Semi AR0521 |
| Technology: | S-mount |
