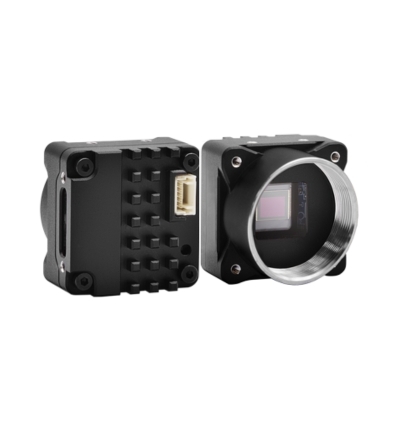

Teledyne DR USB3: 5 MP, Global Shutter, Mono, C-Mount, Side Camera

The Dragonfly USB3 (5 MP, Mono) C-mount camera is engineered for compact imaging systems that require clean monochrome capture, dependable image transfer, and flexible lens selection. Built around the Sony IMX568 CMOS sensor, this model delivers 5 MP resolution with global shutter performance to support sharp acquisition in applications involving movement, measurement, alignment, or fine visual detail.

With its side USB3 connector and C-mount lens interface, the DR-U3-50S4M-C3-C gives OEMs more freedom when designing space-limited systems with specific optical requirements. The camera’s lightweight Dragonfly S architecture, 96 MB image buffer, and multi-mode acquisition support make it a strong option for embedded inspection systems, life science instrumentation, biometric devices, 3D scanning platforms, and compact automation equipment.

TECHNICAL INFORMATION:

• Megapixels: 5.0 MP
• Resolution: 2448 x 2048
• Frame Rate: 46 FPS
• Sensor: Sony IMX568
• Sensor Type: CMOS
• Sensor Format: 1/1.8"
• Pixel Size: 2.74 µm
• Shutter Type: Global shutter
• Spectrum: Mono
• Lens Mount: C-mount
• Data Interface: USB 3.1 Micro-B, side connector
• Image Buffer: 96 MB
• Acquisition Modes: Continuous / Single Frame / Multi Frame
